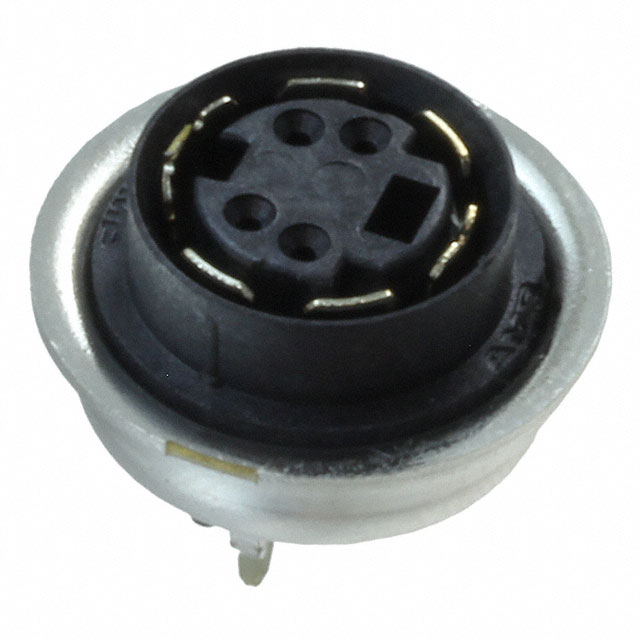

5750317-2
CONN RCPT FMALE MINI DIN 4P SLDRManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors 5750317-2 is a 4-position, shielded Mini-DIN female receptacle designed for panel mount, through-hole termination. This connector features gold-plated female sockets with a 1A current rating and a 30VDC voltage rating. Built with a brass shell and UL94 V-0 rated material flammability, it offers a robust push-pull fastening mechanism with board lock functionality for secure assembly. The operating temperature range is from -55°C to 105°C. This component is suitable for applications in industrial automation, audio/video equipment, and medical instrumentation requiring reliable signal connectivity.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Color | - |
| Voltage Rating | 30VDC |
| Current Rating (Amps) | 1A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Shielded |
| Number of Positions | 4 |
| Orientation | Keyed |
| Shell Size - Insert | Mini DIN |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Push-Pull |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | - |
| Primary Material | Metal |
