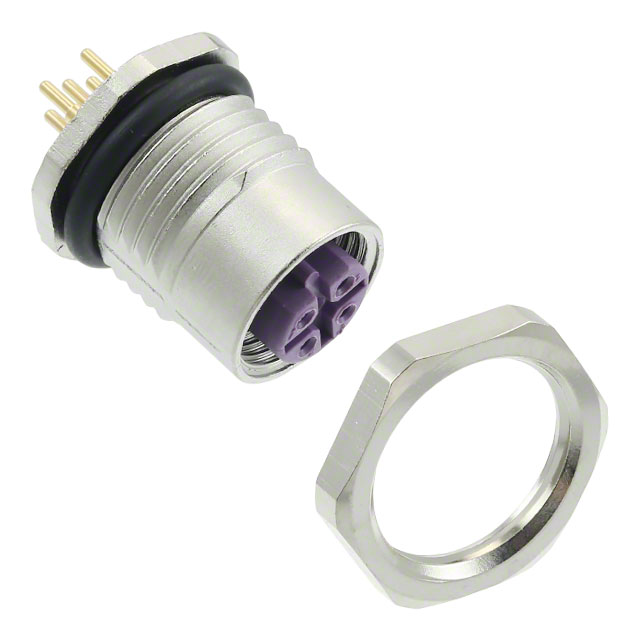

4-2271144-2
CONN RCPT FMALE 5POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 Series receptacle, part number 4-2271144-2, is a 5-position female socket connector designed for robust industrial applications. Featuring a gold contact finish for superior conductivity and durability, this connector boasts an IP68 rating, ensuring protection against dust and water ingress. The threaded fastening type and panel mount, through hole mounting allow for secure integration into bulkhead applications. With a current rating of 4A and a voltage rating of 125VAC/DC, it is suitable for use in automation, sensor/actuator systems, and industrial networking. The M12-5 shell size, combined with brass and zinc die cast shell materials and nickel plating, provides excellent mechanical strength and corrosion resistance, operating reliably within a -40°C to 85°C temperature range.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 125VAC/DC |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | - |
| Number of Positions | 5 |
| Orientation | B |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass and Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
