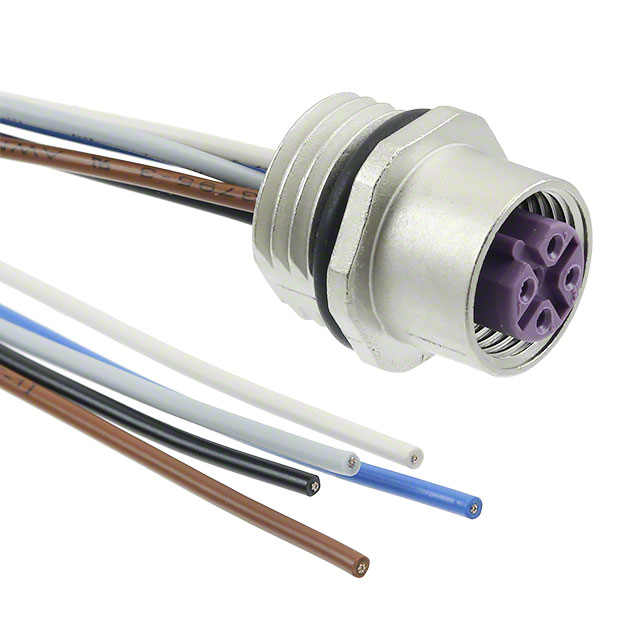

4-2271138-2
CONN RCPT FMALE 5P WIRE LEADSManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 Series Receptacle, Part Number 4-2271138-2. This 5-position circular connector assembly features female socket contacts with gold plating for reliable mating. It offers a current rating of 4A and a voltage rating of 125VAC/DC. Designed for panel mounting with a threaded fastening type, this receptacle is constructed with a zinc die-cast shell finished in nickel and a primary metal material. The M12-5 shell size ensures a robust connection, and its IP68 rating provides excellent protection against dust and water ingress. Termination is via wire leads, making it suitable for demanding industrial automation, sensor and actuator connections, and control systems applications. Operating temperature range is -40°C to 85°C.
Additional Information
Series: M12RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 125VAC/DC |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount |
| Shielding | - |
| Number of Positions | 5 |
| Orientation | B |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
