4-2271112-1
CONN PLUG MALE 5POS GOLD SCREWManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

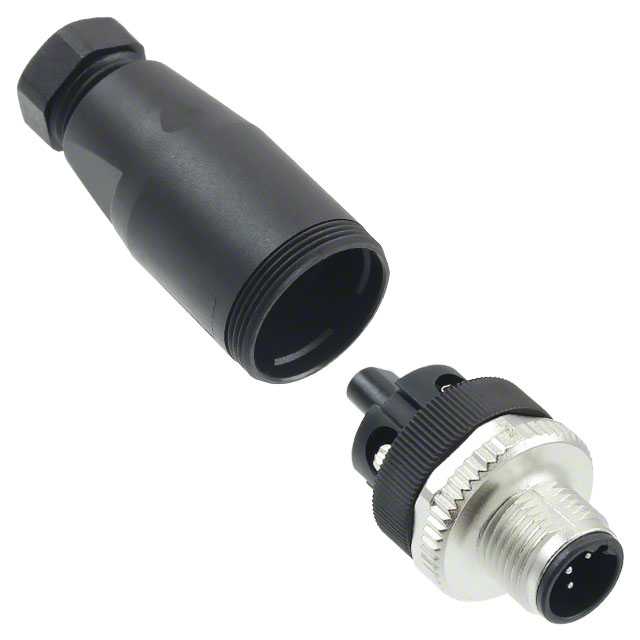

TE Connectivity AMP Connectors M12 Series 4-2271112-1 is a 5-position male circular connector plug. This component features gold-plated contacts for reliable mating and a screw termination method. Designed for industrial environments, it offers IP67 ingress protection, ensuring dust-tight and waterproof operation. The connector utilizes a threaded fastening type and is free-hanging for in-line mounting. With a current rating of 4A and a voltage rating of 125VAC/DC, it operates across a temperature range of -40°C to 85°C. The shell is constructed from polyamide (PA) for durability. This M12-5 connector is commonly employed in industrial automation, sensor and actuator applications, and harsh environment connectivity.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Color | - |
| Voltage Rating | 125VAC/DC |
| Current Rating (Amps) | 4A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | - |
| Number of Positions | 5 |
| Orientation | B |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Screw |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
