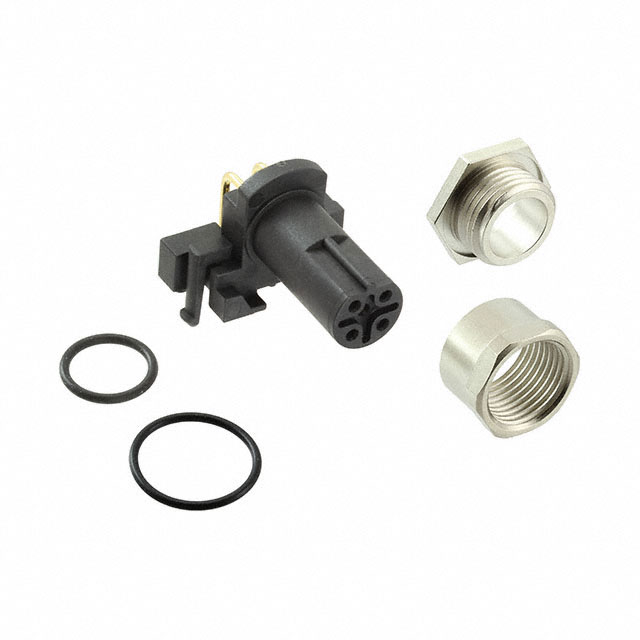

4-2172083-2
CONN RCPT FMALE 5POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 series circular receptacle, part number 4-2172083-2, offers a 5-position female socket configuration with gold-plated contacts for robust signal integrity. This bulkhead-mounted, right-angle connector features a threaded fastening type and a panel mount design suitable for through-hole termination. Engineered for demanding environments, it boasts an IP68 rating for dust-tight and waterproof operation. The M12-5 shell size, constructed from brass with a nickel finish, ensures durability. With a current rating of 4A and a voltage rating of 125V, this component is ideal for industrial automation, sensor and actuator connectivity, and harsh environment networking applications. Operating within a temperature range of -40°C to 85°C, it also includes features such as board guides and board locks for secure assembly.
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 125V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | - |
| Number of Positions | 5 |
| Orientation | B |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
