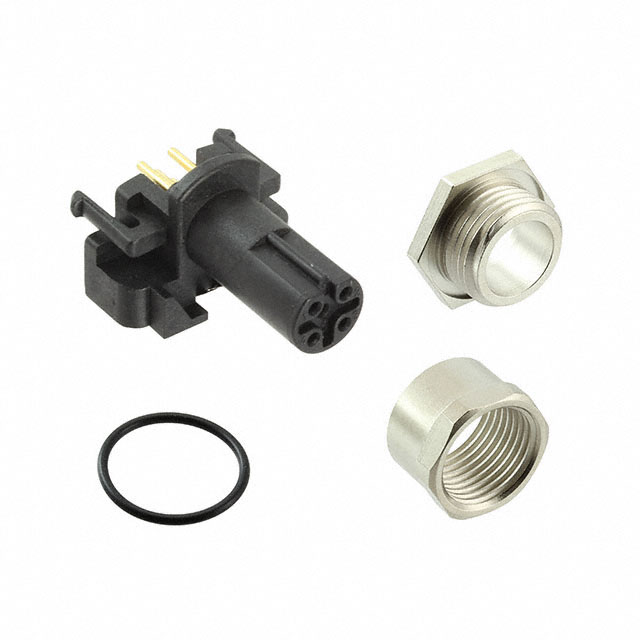

4-2172074-2
CONN RCPT FMALE 5POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 Series, Part Number 4-2172074-2, is a 5-position female receptacle designed for robust connectivity. This circular connector features gold-plated contacts for superior mating and durability, with a current rating of 4A and a voltage rating of 125V. The M12-5 shell size ensures compatibility within this widely adopted industrial standard. Offering IP68 ingress protection, it provides reliable performance in harsh environments, making it suitable for industrial automation, sensor and actuator applications, and factory communication systems. The receptacle is panel mountable with through-hole termination, secured by a threaded fastening type, and includes features like board guides and board locks for secure assembly. Constructed with a brass shell and nickel finish, this shielded component operates within a temperature range of -40°C to 85°C.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 125V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Shielded |
| Number of Positions | 5 |
| Orientation | B |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
