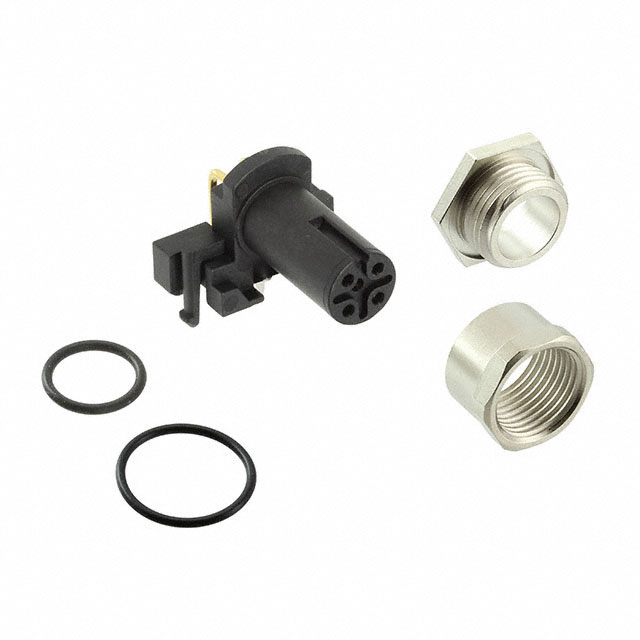

4-2172072-2
CONN RCPT FMALE 5POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 series receptacle, part number 4-2172072-2, offers a 5-position female socket configuration with gold-plated contacts and solder termination. This circular connector is designed for panel mount, through-hole, right-angle applications with a threaded M12-5 shell size. Featuring IP68 ingress protection, it ensures dust-tight and waterproof operation, making it suitable for harsh environments. The brass shell with nickel finish provides robust protection. With a current rating of 4A and a voltage rating of 125V, this component is ideal for various industrial automation, sensor/actuator connectivity, and control systems. The A-coded orientation and bulkhead mounting feature further enhance its application versatility. Operating within a temperature range of -40°C to 85°C, this connector is built for demanding industrial applications.
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 125V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | - |
| Number of Positions | 5 |
| Orientation | A |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
