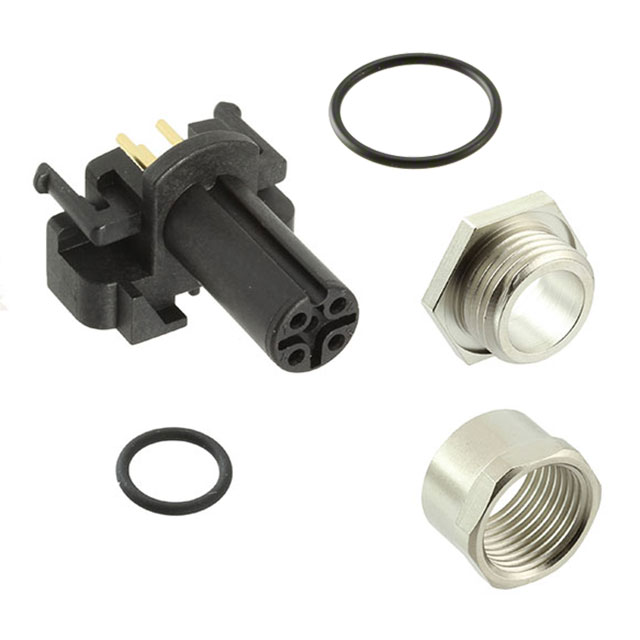

4-2172071-2
CONN RCPT FMALE 5POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 Series 4-2172071-2 is a 5-position female receptacle designed for robust connections. This circular connector features gold-plated contacts for reliable mating and a solder termination style. Engineered for demanding environments, it offers IP68 ingress protection against dust and water, making it suitable for industrial automation, sensor and actuator applications, and harsh environmental controls. The panel mount, through-hole mounting type with a bulkhead mounting feature ensures secure installation. Operating within a -40°C to 85°C temperature range, this connector supports a 4A current rating and a 125V voltage rating. The brass shell with nickel finish and metal primary material provide durability.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 125V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | - |
| Number of Positions | 5 |
| Orientation | A |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
