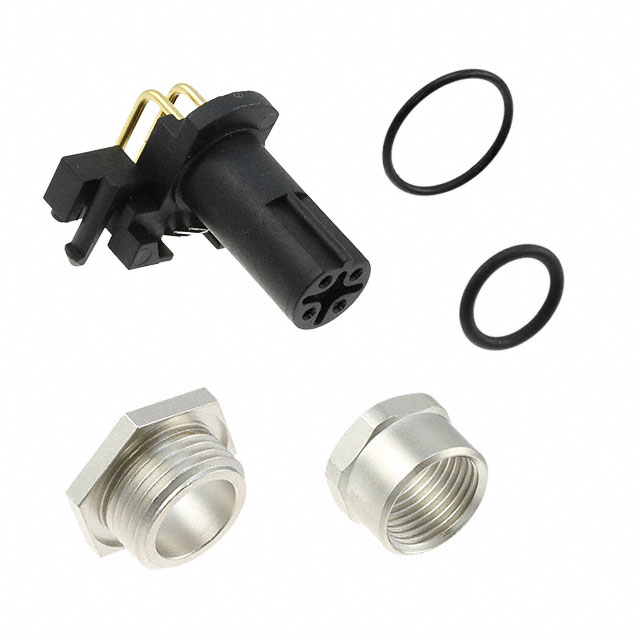

4-2172064-2
CONN RCPT FMALE 5POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 series receptacle, part number 4-2172064-2, offers a 5-position female socket configuration with gold-plated contacts for reliable mating. This shielded, right-angle panel mount connector features a threaded fastening type and a bulkhead mounting feature for secure installation. Designed for through-hole termination via solder, it incorporates a M12-5 shell size. With an IP68 rating, it ensures dust-tight and waterproof operation. The brass shell with nickel finish and metal primary material contribute to its durability. This component is suitable for demanding applications in industrial automation, sensor and actuator connectivity, and heavy equipment industries, operating within a temperature range of -40°C to 85°C. The 4A current and 125VAC/DC voltage ratings make it a robust choice for robust signal and power transmission.
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 125VAC/DC |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | Shielded |
| Number of Positions | 5 |
| Orientation | B |
| Shell Size - Insert | M12-5 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
