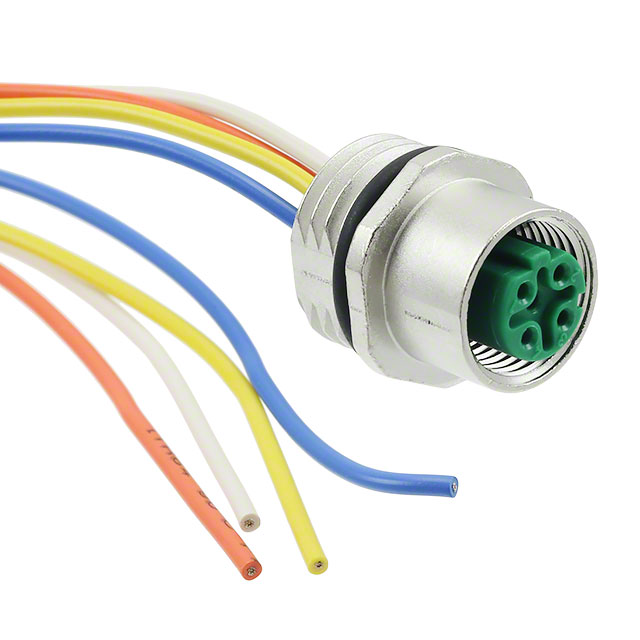

3-2271139-2
CONN RCPT FMALE 4P WIRE LEADSManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 series receptacle, part number 3-2271139-2, offers a 4-position female socket connection with wire leads. This circular connector features a threaded fastening type and is designed for panel mounting with a bulkhead front side nut. The receptacle boasts IP67 ingress protection, ensuring dust-tight and waterproof operation. Its metal construction includes a zinc die cast shell with a nickel finish, and gold plating on the contacts for superior mating performance. The M12-4 shell size and a 250VAC/DC voltage rating make it suitable for demanding applications in industrial automation, sensor and actuator connectivity, and harsh environment communication systems. Operating temperature range is -40°C to 85°C.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount |
| Shielding | - |
| Number of Positions | 4 |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
