3-2271124-1
CONN PLUG MALE 4POS GOLD SCREWManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

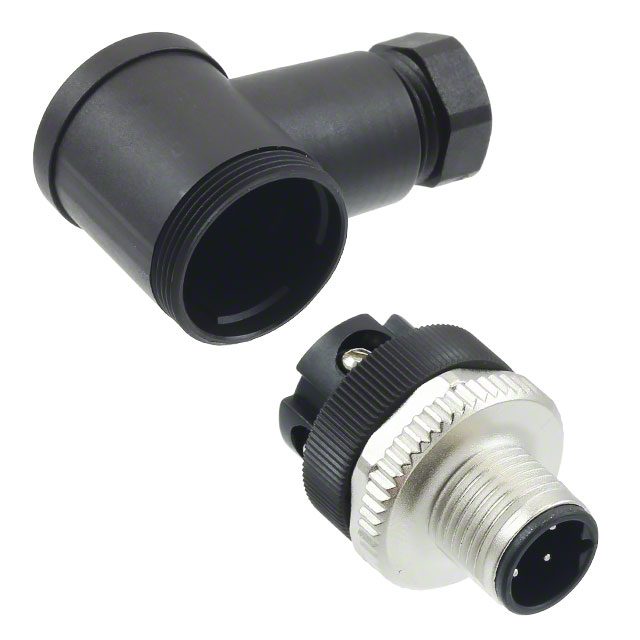

TE Connectivity AMP Connectors M12 series plug, part number 3-2271124-1, features a male 4-position configuration with gold-plated contacts for reliable signal integrity. This free-hanging, right-angle connector utilizes a screw termination method for secure connections. Designed for demanding environments, it offers IP67 ingress protection, ensuring dust-tight and waterproof operation. The polyamide (PA) shell provides robust construction, and the M12-4 shell size is suitable for various industrial applications. With a current rating of 4A and a voltage rating of 250VAC/DC, this connector is ideal for use in industrial automation, sensor and actuator connectivity, and factory networking. The operating temperature range is -40°C to 85°C, and it includes strain relief for added durability.
Additional Information
Series: M12RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Strain Relief |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Color | - |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | 4A |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Shielding | - |
| Number of Positions | 4 |
| Orientation | B |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Screw |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
