3-2271111-2
CONN PLUG MALE 4POS GOLD SCREWManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

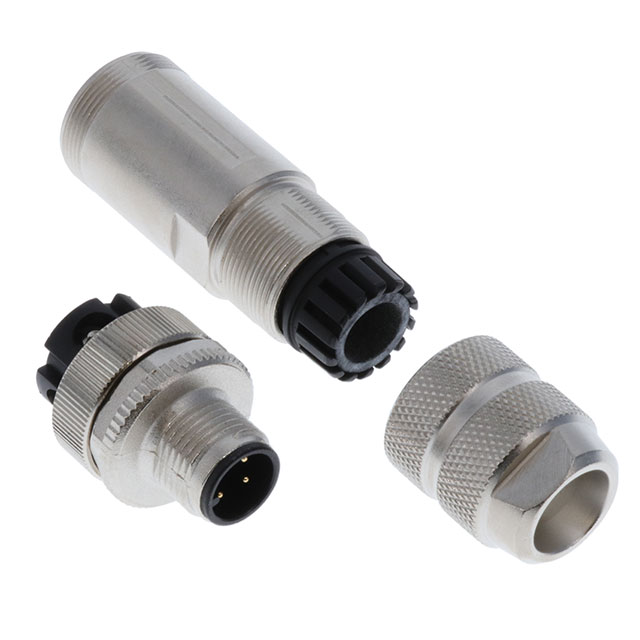

TE Connectivity AMP Connectors M12 series 3-2271111-2 is a shielded, 4-position male plug designed for free-hanging, in-line applications. This connector features gold-plated contacts for reliable mating and a robust zinc die cast shell with a nickel finish, ensuring durability. The screw termination allows for secure wire connections. With an IP67 rating, it offers excellent protection against dust and water ingress, making it suitable for demanding environments. The operating temperature range is -40°C to 85°C, and it supports a current rating of 4A and a voltage rating of 250V. This connector is commonly utilized in industrial automation, sensor and actuator connections, and data transmission systems.
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Color | Silver |
| Voltage Rating | 250V |
| Current Rating (Amps) | 4A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 4 |
| Orientation | A |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Screw |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | 0.197"" ~ 0.315"" (5.00mm ~ 8.00mm) |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
