3-2172086-2
CONN RCPT MALE 4POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

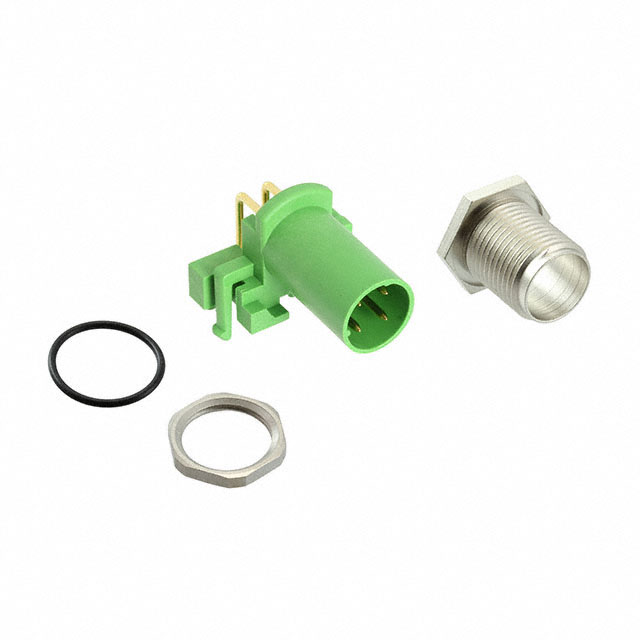

TE Connectivity AMP Connectors M12 series receptacle, part number 3-2172086-2, offers a 4-position male pin configuration with gold-plated contacts for robust signal integrity. This panel mount, right-angle connector features a threaded fastening type and a bulkhead mounting feature, compatible with M12-4 shell sizes. Its brass shell, finished in nickel, provides durability, while the IP67 rating ensures dust-tight and waterproof operation. The receptacle is designed for solder termination and operates within a temperature range of -40°C to 85°C, with a voltage rating of 250V and a current rating of 4A. This component is widely utilized in industrial automation, sensor and actuator applications, and transportation systems demanding reliable connectivity in harsh environments.
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Male Pins |
| Color | Silver |
| Voltage Rating | 250V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | - |
| Number of Positions | 4 |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
