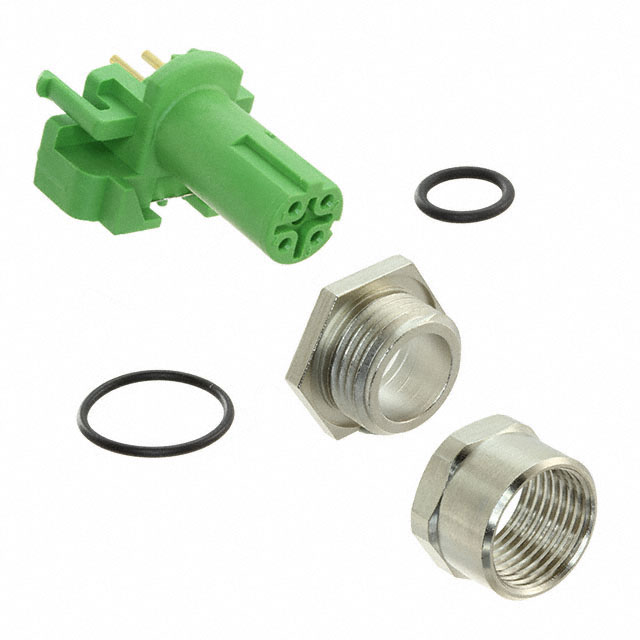

3-2172085-2
CONN RCPT FMALE 4POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 series receptacle, part number 3-2172085-2, offers a robust 4-position female socket connection. This panel mount, through-hole component features a threaded fastening type and bulkhead mounting capability, ensuring secure integration. The gold contact finish provides superior conductivity and durability, with a current rating of 4A and a voltage rating of 250V. Designed for harsh environments, it boasts IP67 ingress protection for dust-tight and waterproof operation. The shielded, brass shell with nickel finish, coupled with a metal primary material, contributes to its overall resilience. This connector is commonly employed in industrial automation, sensor and actuator applications, and general industrial environments where reliable data and power transmission is critical.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 250V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Shielded |
| Number of Positions | 4 |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
