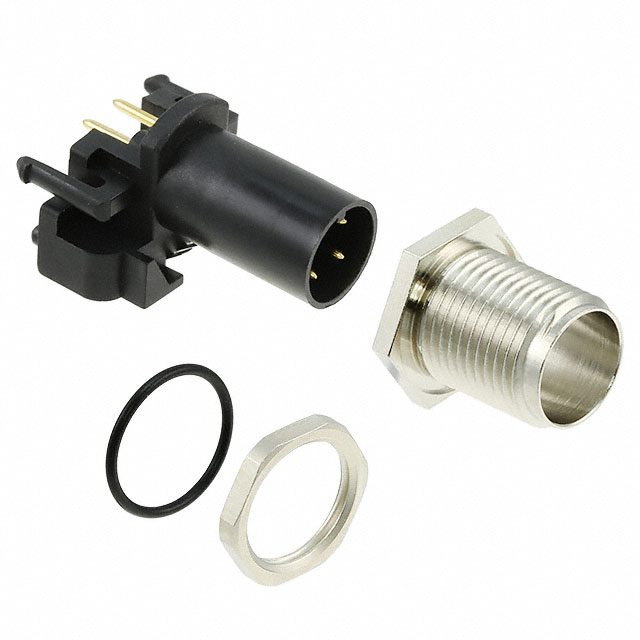

3-2172080-2
CONN RCPT MALE 4POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 series 3-2172080-2 is a 4-position male receptacle designed for robust connectivity. Featuring gold-plated contacts for superior conductivity and mating durability, this shielded connector offers an IP68 rating, ensuring protection against dust and water ingress. The bulkhead panel mount design with through-hole termination facilitates secure installation. Operating within a temperature range of -40°C to 85°C, this brass connector with a nickel shell finish is suitable for demanding applications in industrial automation, sensor and actuator connectivity, and general industrial environments. Its threaded fastening type and M12-4 shell size ensure reliable mechanical and electrical performance.
Additional Information
Series: M12RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Male Pins |
| Color | Silver |
| Voltage Rating | 250V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Shielded |
| Number of Positions | 4 |
| Orientation | A |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
