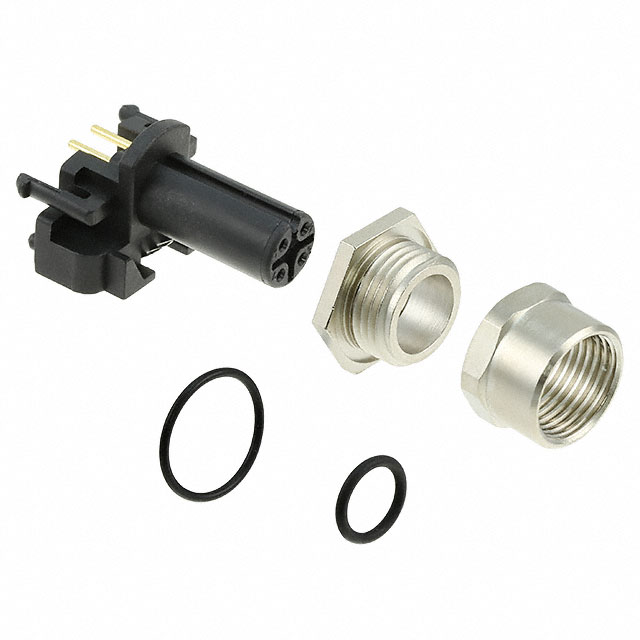

3-2172078-2
CONN RCPT FMALE 4POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors M12 series 3-2172078-2 is a 4-position female receptacle designed for robust connectivity. This circular connector features gold-plated contacts for excellent conductivity and mating cycles, with a solder termination for secure connections. The M12-4 shell size and bulkhead mounting with a threaded fastening type ensure reliable panel integration. Engineered for demanding environments, it offers IP68 ingress protection against dust and water. The connector operates across a temperature range of -40°C to 85°C and supports a current rating of 4A with a voltage rating of 250V. Its shielded design and brass shell with nickel finish contribute to its durability. This component is commonly utilized in industrial automation, sensor and actuator applications, and machine vision systems.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 250V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Shielded |
| Number of Positions | 4 |
| Orientation | A |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
