3-2172065-2
CONN RCPT MALE 4POS TIN SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

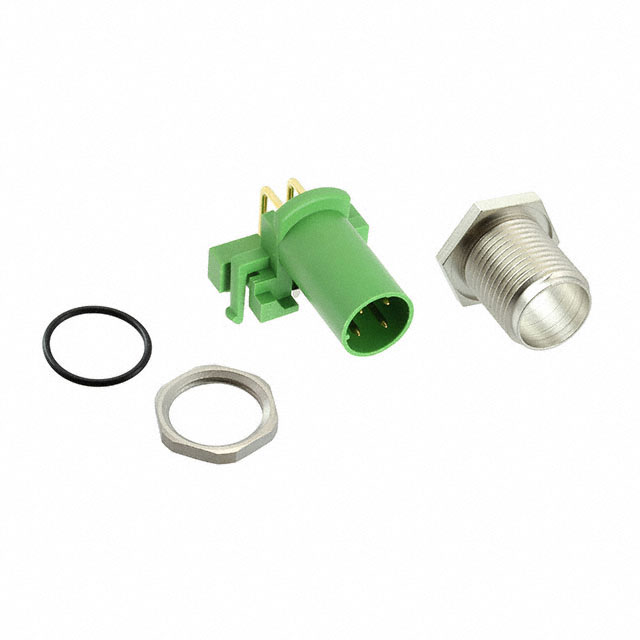

TE Connectivity AMP Connectors M12 series connector, part number 3-2172065-2, is a 4-position male receptacle designed for panel mount applications. This shielded, right-angle connector features a threaded fastening type and M12-4 shell sizing. The male pins have a tin contact finish for mating, and the connector supports a current rating of 4A and a voltage rating of 125V. Constructed with a brass shell and nickel shell finish, it offers IP67 ingress protection, ensuring dust-tight and waterproof operation. The receptacle is intended for through-hole termination with solder. This component is utilized in industrial automation, sensor and actuator connectivity, and general industrial applications where robust and reliable connections are critical. Operating temperature range is -40°C to 85°C.
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Male Pins |
| Color | Silver |
| Voltage Rating | 125V |
| Current Rating (Amps) | 4A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | Shielded |
| Number of Positions | 4 |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead |
| Shell Size, MIL | - |
| Contact Finish - Mating | Tin |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Primary Material | Metal |
