2271195-1
CONN RCPT FMALE 8POS SOLDER CUPManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

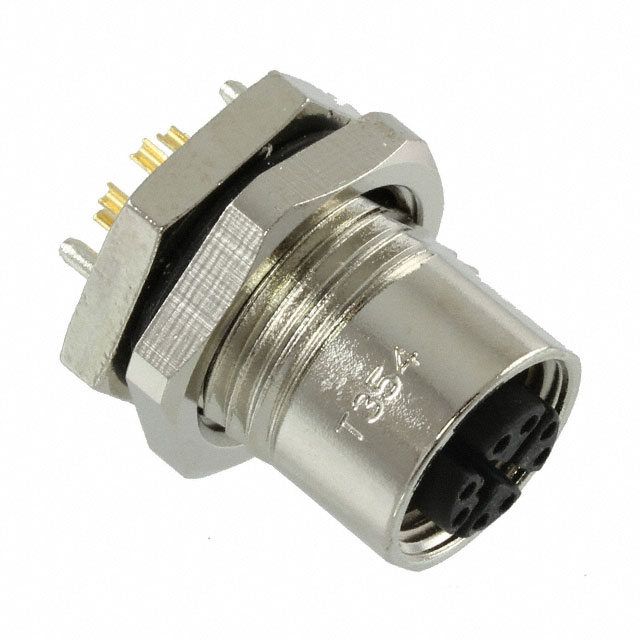

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
Additional Information
Series: M12RoHS Status: Request inventory verificationManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 48V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Panel Mount |
| Shielding | Shielded |
| Number of Positions | 8 |
| Orientation | X |
| Shell Size - Insert | M12-8 |
| Operating Temperature | -40°C ~ 70°C |
| Fastening Type | Threaded |
| Termination | Solder Cup |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Aluminum Alloy |
| Shell Finish | Nickel |
| Primary Material | Metal |
