213782-1
CONN RCPT MALE 19POS TIN SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

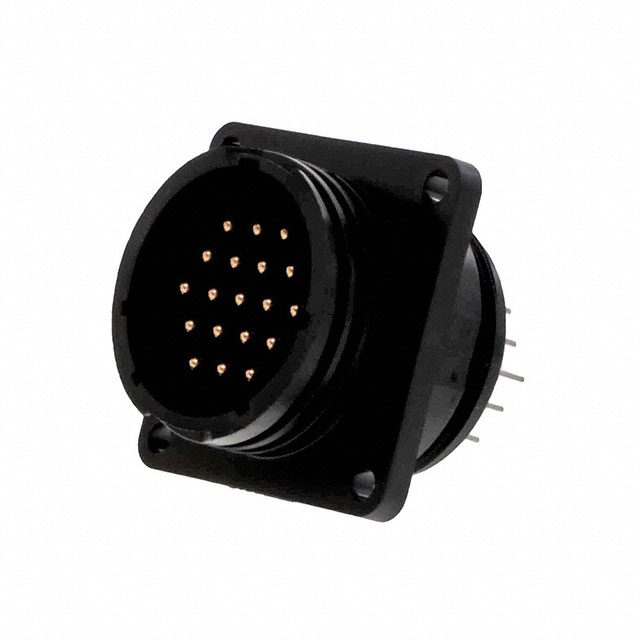

TE Connectivity AMP Connectors CPC Series 1 receptacle, part number 213782-1, features 19 positions with male pins for solder termination. This circular connector, designed for panel mount applications via a flange and through-hole mounting, utilizes a threaded fastening type. The receptacle is constructed with a Polyamide (PA), Nylon shell material, rated UL94 V-0 for material flammability. Its contact finish is tin, and it operates within a temperature range of -55°C to 105°C. The connector is unshielded and has a voltage rating of 250VAC/DC. This component is commonly utilized in industrial automation, control systems, and test and measurement equipment.
Additional Information
Series: CPC Series 1RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Male Pins |
| Color | Black |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Unshielded |
| Number of Positions | 19 |
| Orientation | A |
| Shell Size - Insert | 23-19 |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Tin |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
