213780-1
CONN RCPT MALE 24POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

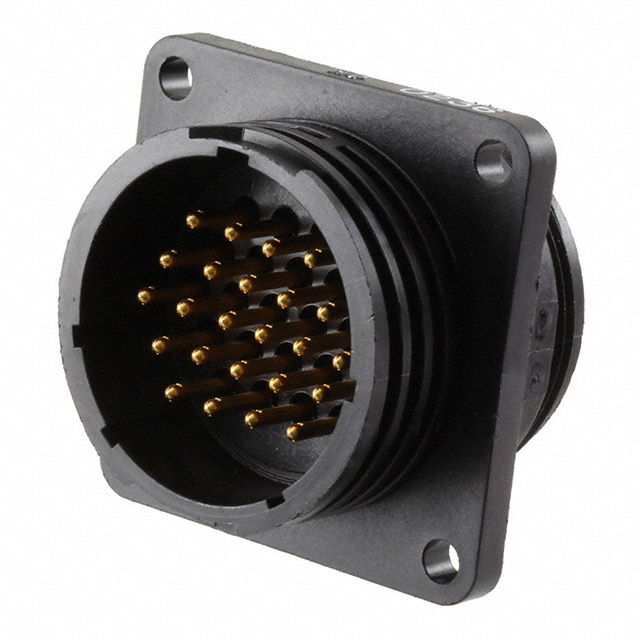

TE Connectivity AMP Connectors CPC Series 1 213780-1 is a 24-position circular receptacle connector with male solder pin contacts. The contact finish is gold, ensuring reliable mating. This panel mount, through-hole component features a threaded fastening mechanism and a flange mounting feature for secure integration. Constructed with UL94 V-0 rated polyamide (PA) nylon for the shell, it offers robust performance within an operating temperature range of -55°C to 105°C. The connector has a 250VAC/DC voltage rating and is designed for applications requiring a durable and high-density circular connection. This component is utilized in industries such as industrial automation, aerospace, and medical equipment.
Additional Information
Series: CPC Series 1RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Male Pins |
| Color | - |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | - |
| Number of Positions | 24 |
| Orientation | A |
| Shell Size - Insert | 23-24 |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
