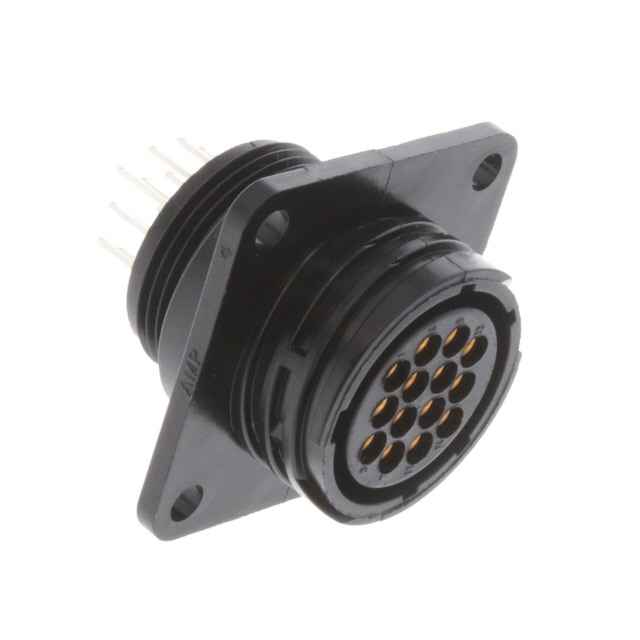

213729-1
CONN RCPT CPC 14POS PANEL MOUNTManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors CPC Series 1 receptacle features 14 positions with female sockets designed for solder termination. This circular connector, part number 213729-1, is panel mountable with a flange and threaded fastening, suitable for through-hole mounting. The Polyamide (PA), Nylon shell is rated UL94 V-0 for material flammability and operates within a temperature range of -55°C to 105°C. It boasts a 250VAC/DC voltage rating and gold contact finish for mating. Commonly found in industrial automation, test and measurement, and aerospace applications, this unshielded receptacle is supplied in bulk packaging.
Additional Information
Series: CPC Series 1RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Black |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Unshielded |
| Number of Positions | 14 |
| Orientation | A |
| Shell Size - Insert | 17-14 |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
