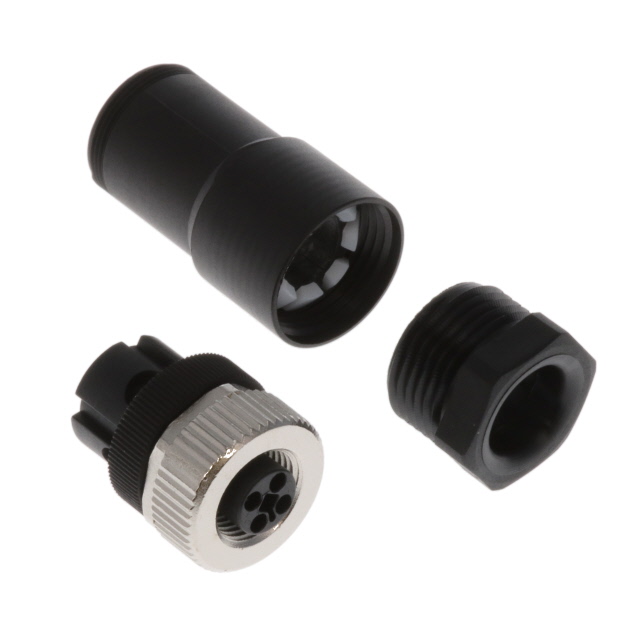

2120948-1
CONN PLUG FMALE 4POS GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
4 (Power) Position Circular Connector Plug, Female Sockets
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 41 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut |
| Packaging | Bag |
| Connector Type | Plug, Female Sockets |
| Color | - |
| Voltage Rating | 60V |
| Current Rating (Amps) | 12A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 4 (Power) |
| Orientation | T |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | 0.315"" ~ 0.394"" (8.00mm ~ 10.00mm) |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
