2120946-1
M12 DC POWER SOCKET CONNECTOR, TManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

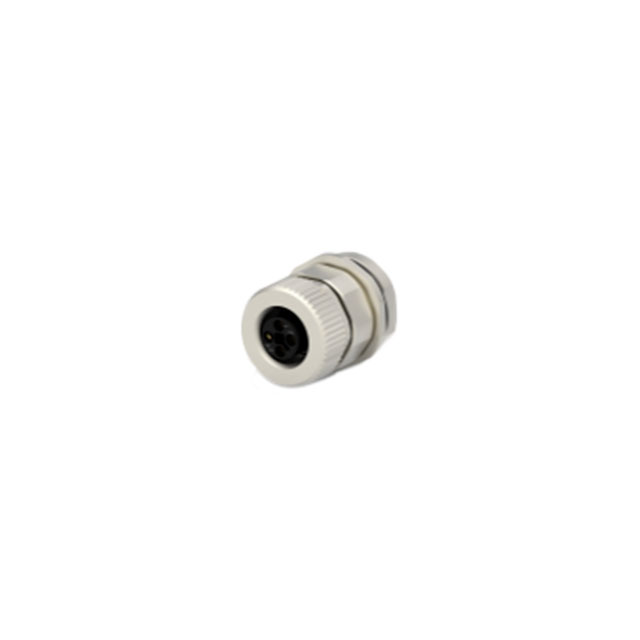

TE Connectivity AMP Connectors M12 Series 4-position DC power socket connector, part number 2120946-1. This panel-mount plug features female sockets with gold contact finish for reliable mating. Designed for threaded fastening with a coupling nut, it offers IP67 ingress protection, ensuring dust-tight and waterproof operation. The zinc die-cast shell with nickel plating and M12-4 shell size provides robust construction. With a current rating of 12A and voltage rating of 60VAC/DC, this unshielded connector is suitable for demanding applications in industrial automation, robotics, and sensor/actuator connectivity. Operating temperature range is -40°C to 85°C.
Additional Information
Series: M12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut |
| Packaging | Bag |
| Connector Type | Plug, Female Sockets |
| Color | Silver |
| Voltage Rating | 60VAC/DC |
| Current Rating (Amps) | 12A |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 4 (Power) |
| Orientation | T |
| Shell Size - Insert | M12-4 |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | Threaded |
| Termination | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Primary Material | Metal |
