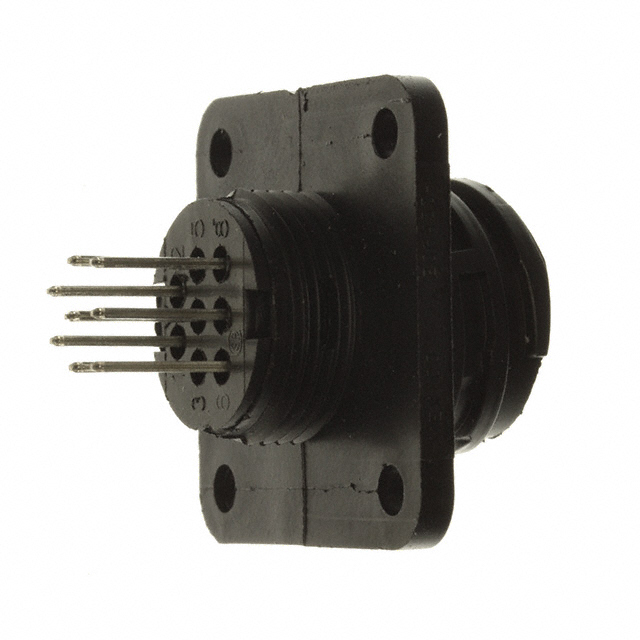

208657-1
CONN RCPT FMALE 8POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors CPC Series 2 receptacle, part number 208657-1, offers an 8-position female socket configuration with a gold contact finish for superior conductivity and durability. This panel mount, through-hole component features a threaded fastening type and a flange for secure mounting. Constructed with glass-filled polyamide (PA) for enhanced strength and a UL94 V-0 flammability rating, it ensures reliable performance in demanding environments. The keyed orientation prevents misconnection, and the component operates within a temperature range of -40°C to 105°C with a voltage rating of 250V and a current rating of 7.5A. This connector is commonly utilized in industrial automation, medical equipment, and transportation systems.
Additional Information
Series: CPC Series 2RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Color | Black |
| Voltage Rating | 250V |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | - |
| Number of Positions | 8 |
| Orientation | Keyed |
| Shell Size - Insert | 11-8 |
| Operating Temperature | -40°C ~ 105°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Shell Finish | - |
| Primary Material | Plastic |
Request a Quote
