207303-1
CONN RCPT MALE 16POS TIN SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

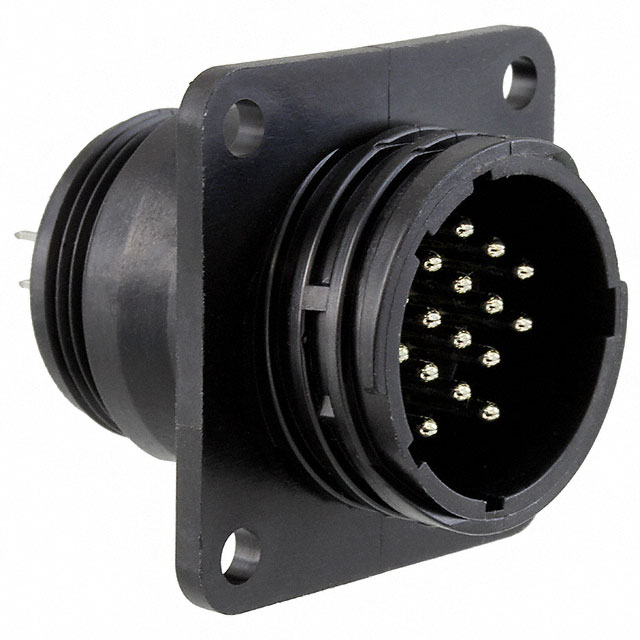

TE Connectivity AMP Connectors CPC Series 1, Part Number 207303-1, is a 16-position circular connector receptacle featuring male pins with a tin solder termination. This panel mount, through-hole component is designed for a threaded fastening type and utilizes a flange mounting feature. The receptacle's primary material is thermoplastic, with a UL94 V-0 flammability rating. It operates within a temperature range of -55°C to 105°C and supports a voltage rating of 250VAC/DC. Commonly employed in industrial automation, aerospace, and medical equipment, this connector ensures reliable signal and power connections in demanding environments. The component is supplied in tray packaging.
Additional Information
Series: CPC Series 1RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Male Pins |
| Color | - |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | - |
| Number of Positions | 16 |
| Orientation | A |
| Shell Size - Insert | 17-16 |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Tin |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Primary Material | Plastic |
