1986377-2
CONN RCPT FMALE 7POS GOLD SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Circular Connector Assemblies
Quality Control: Learn More

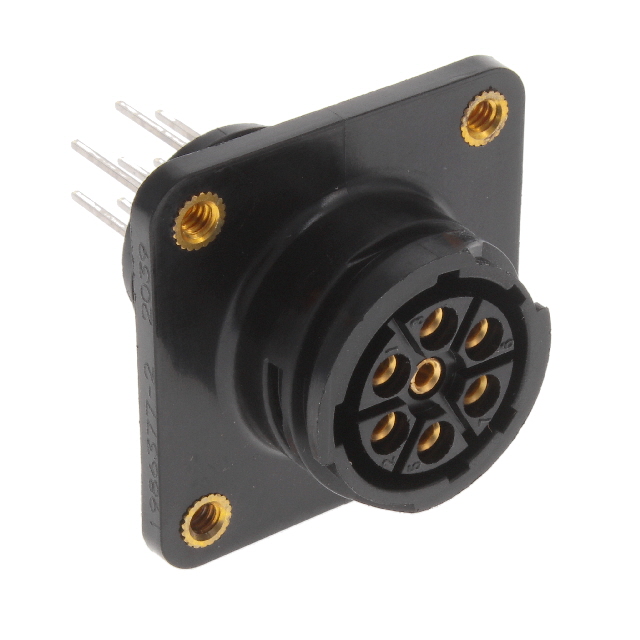

TE Connectivity AMP Connectors CPC Series 1 receptacle, part number 1986377-2, offers a 7-position female socket configuration with gold-plated contacts for reliable mating. This panel mount, through-hole component features a threaded fastening type and is constructed with a Polyamide (PA) nylon shell, rated UL94 V-0 for material flammability. The keyed orientation ensures proper connection alignment. Designed for a 250VAC/DC voltage rating, this connector is typically utilized in industrial automation, aerospace, and transportation applications where robust and secure connections are critical. The operating temperature range is -55°C to 105°C.
Additional Information
Series: CPC Series 1RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Black |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Unshielded |
| Number of Positions | 7 |
| Orientation | Keyed |
| Shell Size - Insert | 13-7 |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Threaded |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
