787653-3
CONN BTB SCA-2 RCPT 20P R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: Centronics Connectors
Quality Control: Learn More

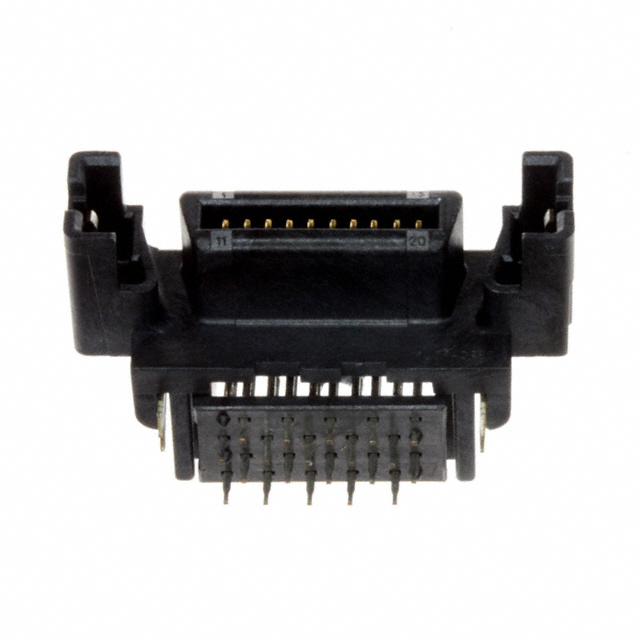

TE Connectivity AMP Connectors CHAMP .050 I Series 787653-3 is a 20-position right-angle solder receptacle connector. This board-to-board component features SCA-2 style contacts with a gold finish, specified at 30.0µin (0.76µm) for enhanced conductivity and durability. Designed for through-hole mounting with two rows of contacts and an outer shroud, it incorporates a board lock feature for secure assembly. This connector is suitable for applications in the telecommunications, data processing, and industrial automation sectors where reliable high-density interconnects are critical. The product is supplied in tray packaging.
Additional Information
Series: CHAMP .050 IRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Type | Board to Board, SCA-2 |
| Flange Feature | - |
| Termination | Solder |
| Connector Style | Outer Shroud Contacts |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 2 |
