5557932-1
CONN SCSI RCPT 50POS R/A SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Centronics Connectors
Quality Control: Learn More

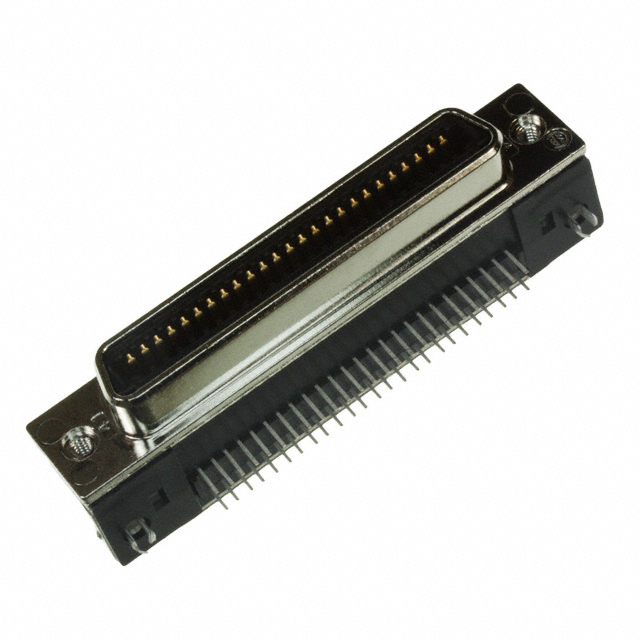

TE Connectivity AMP Connectors' CHAMP .085 series receptacle connector, part number 5557932-1, offers a 50-position, 2-row configuration for SCSI applications. This right-angle, panel-mount connector features through-hole termination with gold contact finish, specified at 30.0µin (0.76µm) for enhanced conductivity and durability. Designed with a shielded outer shroud, it incorporates features such as bail lock and board lock for secure mating and mounting. The flange includes a 4-40 threaded insert on the board side for robust panel integration. This component is commonly utilized in data acquisition, industrial automation, and telecommunications equipment. Packaging is provided in trays.
Additional Information
Series: CHAMP .085RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bail Lock, Board Lock, Shielded |
| Packaging | Tray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 50 |
| Type | SCSI |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Connector Style | Outer Shroud Contacts |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 2 |
