5554346-2
CONN RCPT 36POS PNL MNT IDCManufacturer: TE Connectivity AMP Connectors
Categories: Centronics Connectors
Quality Control: Learn More

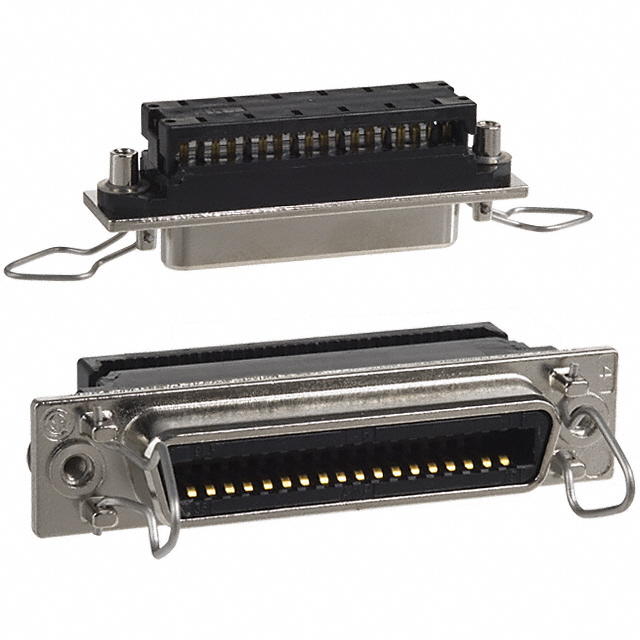

TE Connectivity AMP Connectors CHAMP .085 Series 5554346-2 is a 36-position receptacle connector designed for panel mounting. This connector features IDC termination and a shielded outer shroud with gold contact finish, specified at 30.0µin (0.76µm) for robust performance. The 5554346-2 includes a bail lock mechanism for secure mating and a flange with a 4-40 threaded hole for board-side mounting. With two rows of contacts, this connector is typically utilized in data communication, telecommunications, and industrial automation applications where reliable high-density interconnects are essential.
Additional Information
Series: CHAMP .085RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bail Lock, Shielded |
| Packaging | Tray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Mounting Type | Panel Mount |
| Number of Positions | 36 |
| Type | - |
| Flange Feature | Board Side (4-40) |
| Termination | IDC |
| Connector Style | Outer Shroud Contacts |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 2 |
