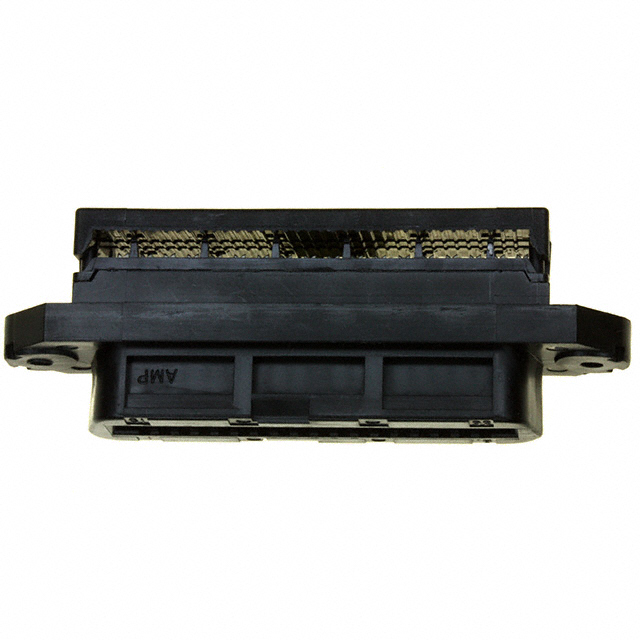

553601-1
CONN RCPT 36POS PNL MNT IDCManufacturer: TE Connectivity AMP Connectors
Categories: Centronics Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors CHAMP .085 Series 553601-1 is a 36-position receptacle connector designed for panel mounting. This component features Insulation Displacement Connection (IDC) termination, eliminating the need for discrete wire stripping and crimping. The receptacle offers a two-row configuration with gold-plated contacts, providing a contact finish thickness of 30.0µin (0.76µm) for reliable signal integrity and corrosion resistance. The connector includes a panel mount flange with 4-40 screw mounting capability for secure installation. This connector is commonly utilized in data communication infrastructure, telecommunications equipment, and industrial automation systems where robust and efficient interconnect solutions are critical. The product is supplied in tray packaging.
Additional Information
Series: CHAMP .085RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Mounting Type | Panel Mount |
| Number of Positions | 36 |
| Type | - |
| Flange Feature | Housing/Shell (4-40) |
| Termination | IDC |
| Connector Style | Outer Shroud Contacts |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 2 |
