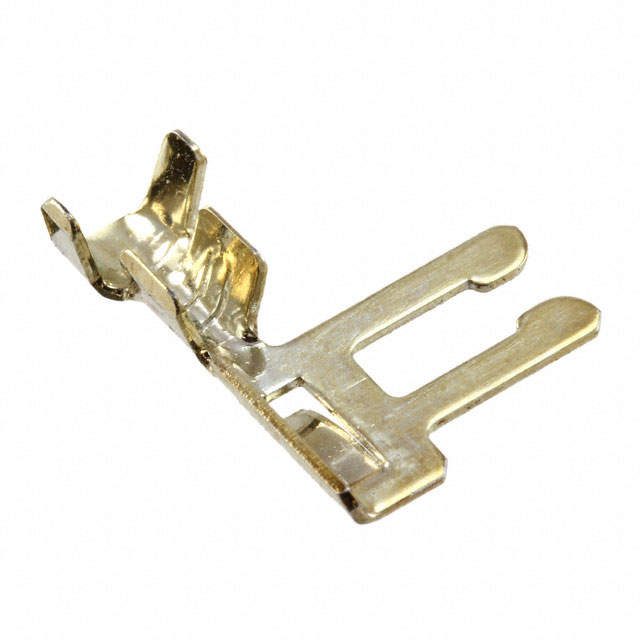

530002-8

TERM EDGE DUOTYNE 18/22AWG CRIMP

Manufacturer: TE Connectivity AMP Connectors

Categories: Card Edge Connector Contacts

Quality Control: Learn More

TE Connectivity AMP Connectors DUO-TYNE series edge terminal, part number 530002-8, is a non-gendered, crimp-style contact designed for 18 AWG and 22 AWG wire gauges. Featuring a tin contact finish and constructed from phosphor bronze, this component ensures reliable termination in demanding applications. The DUO-TYNE series is engineered for high-density card edge connections, finding utility in sectors such as industrial automation, telecommunications, and consumer electronics where robust and efficient interconnects are paramount. Packaged in Tape & Reel (TR) for high-volume manufacturing processes, this terminal provides a dependable solution for connecting wires directly to edge connectors.

Additional Information

Series: DUO-TYNERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Contact FinishTin
Contact TerminationCrimp
Wire Gauge18 AWG, 22 AWG
Pin or SocketNon-Gendered
Contact Finish Thickness-
Contact MaterialPhosphor Bronze
