5-829822-0
CONN HDR 100POS 0.1 STACK T/HManufacturer: TE Connectivity AMP Connectors
Categories: Board Spacers, Stackers (Board to Board)
Quality Control: Learn More

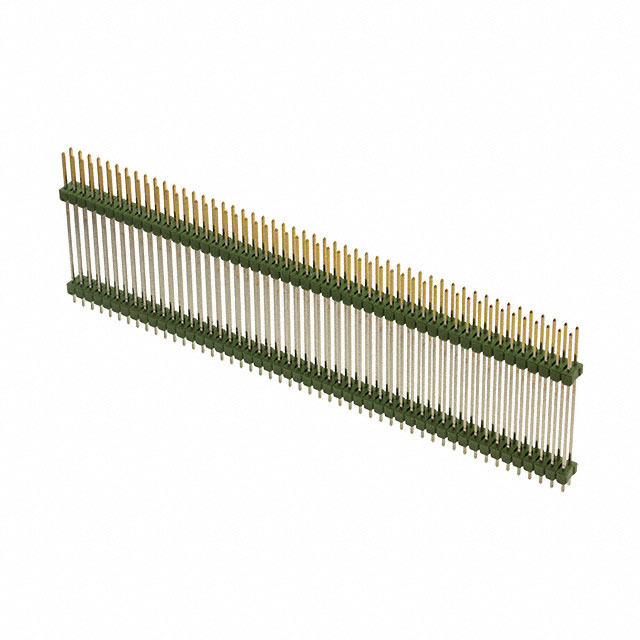

TE Connectivity AMP Connectors presents the AMPMODU Mod II series 5-829822-0, a 100-position header spacer connector designed for through-hole mounting. This component features a 0.100" (2.54mm) pitch with a 2-row configuration and a 0.100" (2.54mm) row spacing. The post mating length is 0.358" (9.100mm), contributing to an overall stack height of 1.075" (27.300mm). The contact finish for the mating post is gold with a thickness of 31.5µin (0.80µm). The overall pin length is 1.551" (39.400mm), and the tail length is 0.118" (3.000mm). Termination is achieved via solder. This green colored connector is supplied in bulk packaging and finds application in board-to-board interconnects within telecommunications and industrial automation sectors.
Additional Information
Series: AMPMODU Mod IIRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Through Hole |
| Pitch | 0.100"" (2.54mm) |
| Row Spacing | 0.100"" (2.54mm) |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 31.5µin (0.80µm) |
| Number of Rows | 2 |
| Number of Positions | 100 |
| Length - Overall Pin | 1.551"" (39.400mm) |
| Length - Post (Mating) | 0.358"" (9.100mm) |
| Length - Stack Height | 1.075"" (27.300mm) |
| Length - Tail | 0.118"" (3.000mm) |
