4-146509-0
CONN HDR 80POS 0.1 STACK T/HManufacturer: TE Connectivity AMP Connectors
Categories: Board Spacers, Stackers (Board to Board)
Quality Control: Learn More

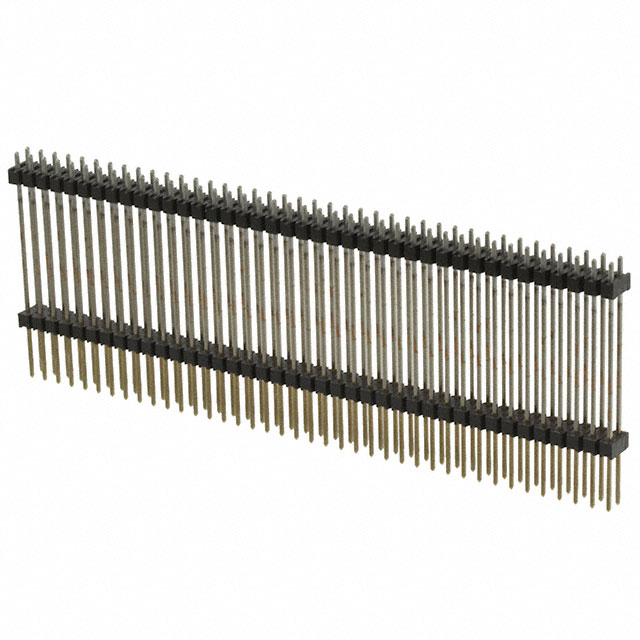

TE Connectivity AMP Connectors AMPMODU Mod II connector, part number 4-146509-0, is an 80-position header with a 0.100" (2.54mm) pitch. This through-hole, stackable connector features two rows and a 1.000" (25.400mm) stack height. The post mating length is 0.330" (8.382mm), and the pin length overall is 1.430" (36.322mm). It is designed with gold contact finish for the mating posts, with a thickness of 15.0µin (0.38µm). The termination method is solder. This component is commonly utilized in board-to-board interconnect applications across various industries, including industrial automation and consumer electronics. It is supplied in bulk packaging.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Through Hole |
| Pitch | 0.100"" (2.54mm) |
| Row Spacing | 0.100"" (2.54mm) |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 15.0µin (0.38µm) |
| Number of Rows | 2 |
| Number of Positions | 80 |
| Length - Overall Pin | 1.430"" (36.322mm) |
| Length - Post (Mating) | 0.330"" (8.382mm) |
| Length - Stack Height | 1.000"" (25.400mm) |
| Length - Tail | 0.100"" (2.540mm) |
