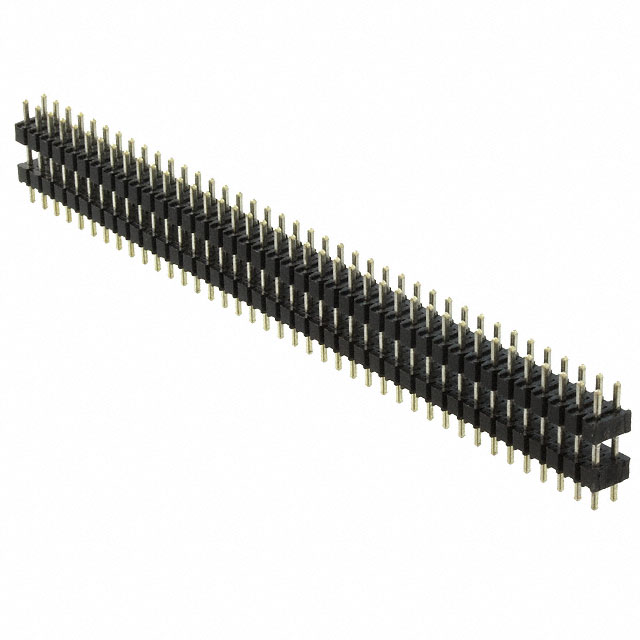

4-146486-0
CONN HDR 80POS 0.1 STACK T/HManufacturer: TE Connectivity AMP Connectors
Categories: Board Spacers, Stackers (Board to Board)
Quality Control: Learn More
80 Position Header Spacer Connector 0.100"" (2.54mm) Tin-Lead Through Hole
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Through Hole |
| Pitch | 0.100"" (2.54mm) |
| Row Spacing | 0.100"" (2.54mm) |
| Termination | Solder |
| Contact Finish - Post (Mating) | Tin-Lead |
| Contact Finish Thickness - Post (Mating) | 100.0µin (2.54µm) |
| Number of Rows | 2 |
| Number of Positions | 80 |
| Length - Overall Pin | 0.533"" (13.538mm) |
| Length - Post (Mating) | 0.123"" (3.124mm) |
| Length - Stack Height | 0.300"" (7.620mm) |
| Length - Tail | 0.110"" (2.800mm) |
Request a Quote
