146510-3
CONN HDR 6POS 0.1 STACK T/H GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Board Spacers, Stackers (Board to Board)
Quality Control: Learn More

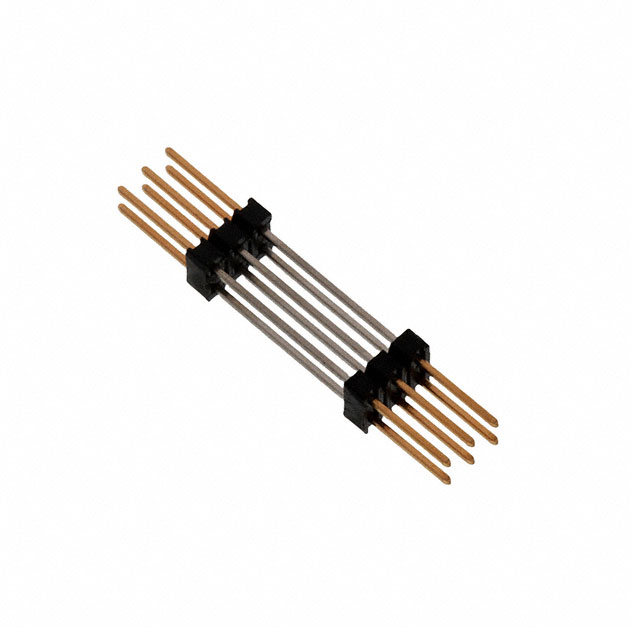

6 Position Header Spacer Connector 0.100"" (2.54mm) Gold Through Hole
Additional Information
Series: AMPMODU Mod IIRoHS Status: Request inventory verificationManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Through Hole |
| Pitch | 0.100"" (2.54mm) |
| Row Spacing | 0.100"" (2.54mm) |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 15.0µin (0.38µm) |
| Number of Rows | 2 |
| Number of Positions | 6 |
| Length - Overall Pin | 1.430"" (36.322mm) |
| Length - Post (Mating) | 0.330"" (8.382mm) |
| Length - Stack Height | 0.770"" (19.558mm) |
| Length - Tail | 0.330"" (8.382mm) |
Request a Quote
