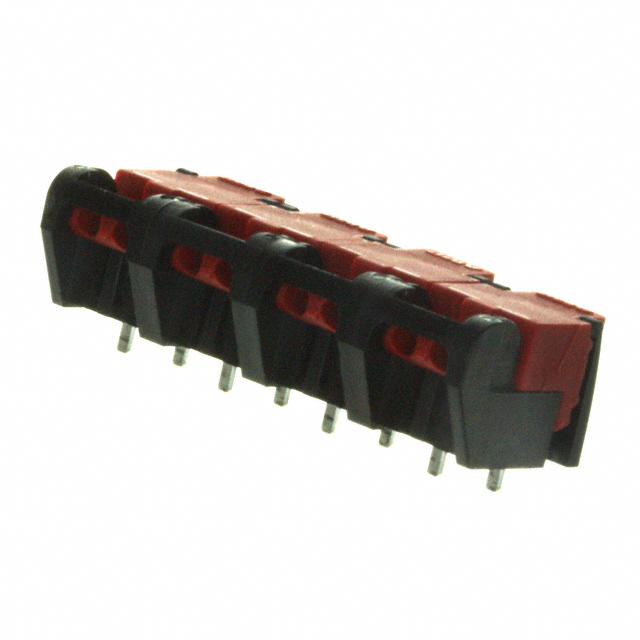

1339344-1
CONN WIRE IDC 8P 22-26AWG PCB RAManufacturer: TE Connectivity AMP Connectors
Categories: Board In, Direct Wire to Board
Quality Control: Learn More
TE Connectivity AMP Connectors Pivot II series features a black, 8-position (4 pair) individual wire connector with IDC termination. This right-angle, through-hole mounted component is designed for wire gauges ranging from 22-26 AWG. The contacts are finished with 150µin (3.81µm) of tin. This connector is suitable for applications requiring direct wire-to-board connections and is commonly found in industrial automation and telecommunications systems. The double-entry feature enhances connection flexibility.
Additional Information
Series: Pivot IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Double Entry |
| Packaging | Tray |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Wire Gauge | 22-26 AWG |
| Number of Positions | 8 (4 Pair) |
| Row Spacing | - |
| Contact Finish Thickness | 150.0µin (3.81µm) |
| Cable Termination | IDC |
| Cable Pitch | - |
| Board-Side Pitch | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

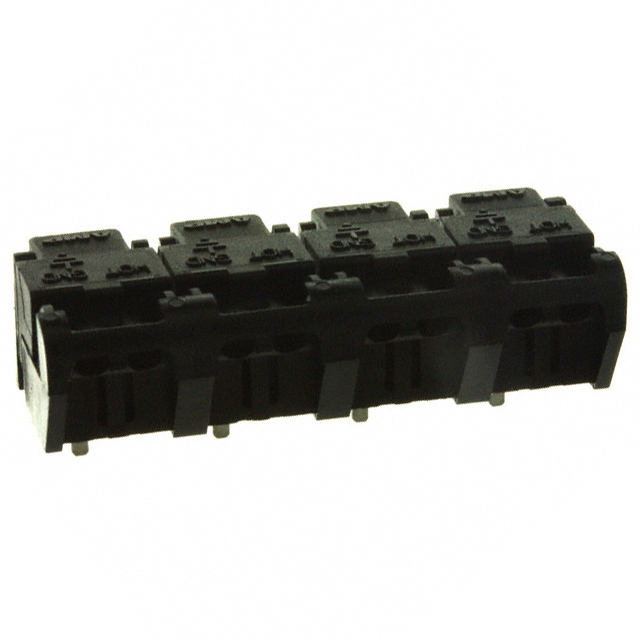

1339312-1
CONN WIRE IDC 8P 22-26AWG PCB RA

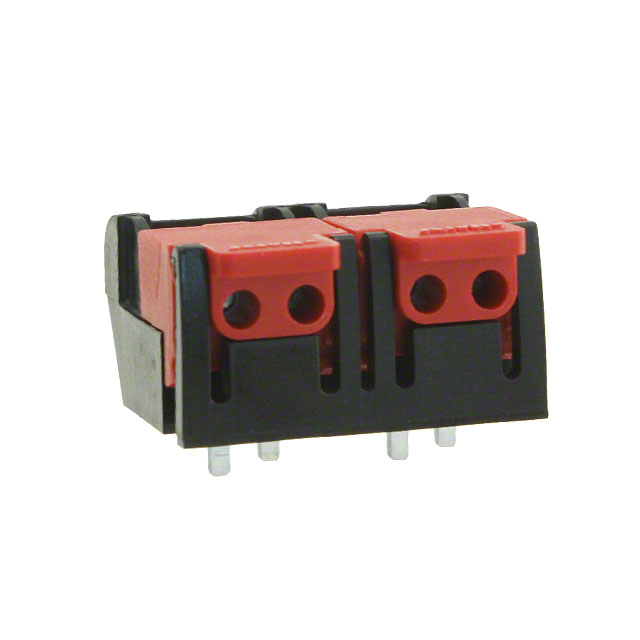

1339343-1
CONN WIRE IDC 4P 22-26AWG PCB RA

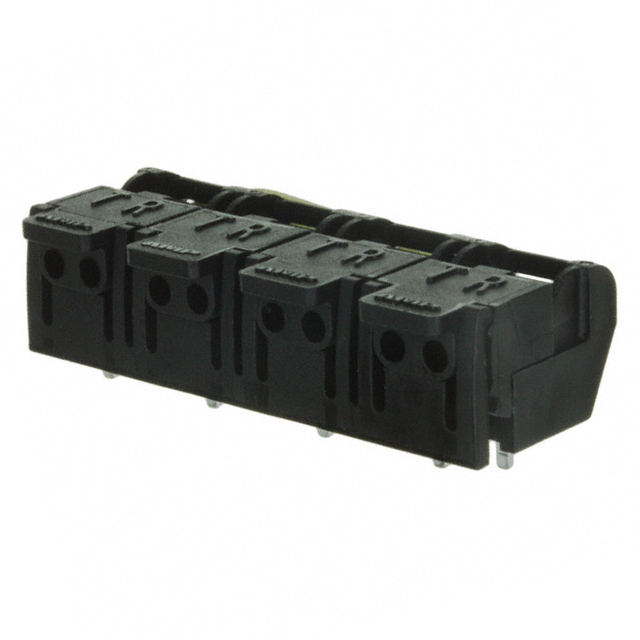

1339375-2
