BC6-Q308-03
CONN BARRIER STRIP 3CIRC 0.375Manufacturer: TE Connectivity AMP Connectors
Categories: Barrier Blocks
Quality Control: Learn More
3 Circuit 0.375"" (9.53mm) Barrier Block Connector Screws with Captive Plate
Additional Information
Series: BC6, BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Flange |
| Packaging | Bulk |
| Color | Black |
| Voltage Rating | 300V |
| Current Rating (Amps) | 20A |
| Wire Gauge | 12-22 AWG |
| Pitch | 0.375"" (9.53mm) |
| Number of Rows | 1 |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws with Captive Plate |
| Bottom Termination | Quick Connect (0.250""), Insulated |
| Barrier Type | 3 Wall (Tri) |
| Number of Circuits | 3 |
| Number of Wire Entries | 3 |
Request a Quote
Clients Also Buy
1546865-4
CONN BARRIER STRIP 4CIRC 0.375

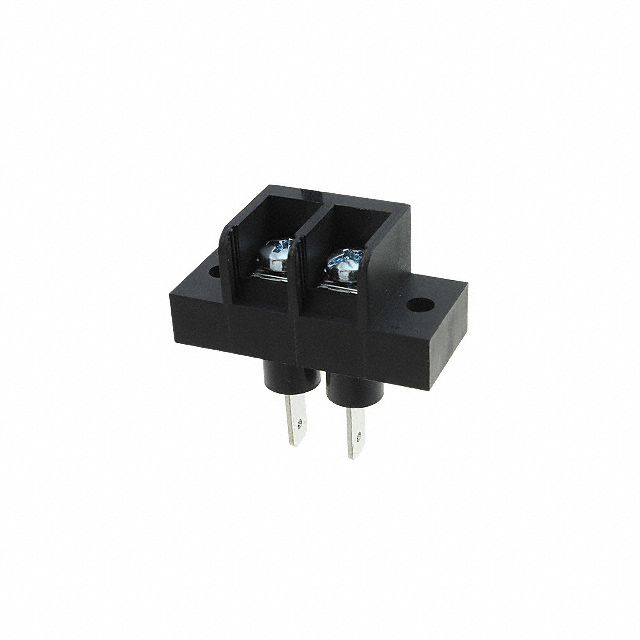

1776897-2
