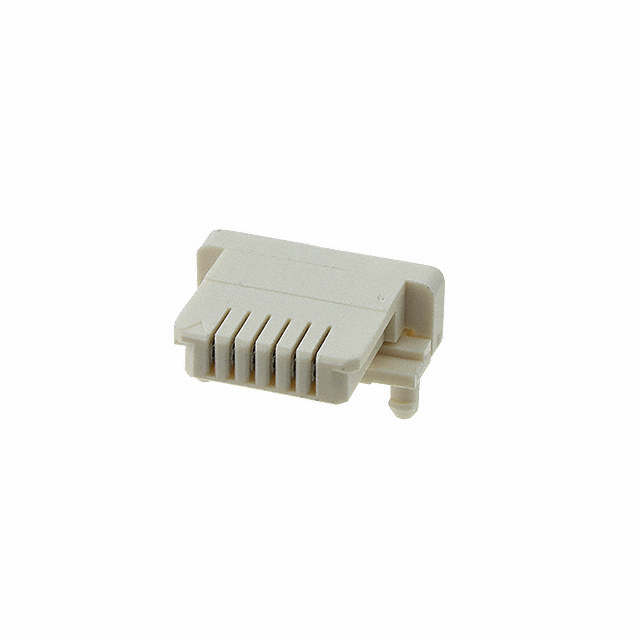

917360-6
CONN RCPT 6POS R/A TINManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
TE Connectivity AMP Connectors 917360-6 is a 6-position, non-gendered right-angle receptacle for through-hole mounting. This component, part of the Arrays, Edge Type, Mezzanine (Board to Board) category, features a tin contact finish with a thickness of 31.5µin (0.80µm). The design incorporates a board lock for enhanced mechanical stability and has a height of 0.213" (5.40mm) above the board. With a pitch of 0.049" (1.25mm) and two rows of contacts, this connector is suitable for applications in consumer electronics and industrial automation where reliable board-to-board interconnectivity is critical. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Non-Gendered |
| Contact Finish | Tin |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Pitch | 0.049"" (1.25mm) |
| Height Above Board | 0.213"" (5.40mm) |
| Contact Finish Thickness | 31.5µin (0.80µm) |
| Mated Stacking Heights | - |
| Number of Rows | 2 |
