8-5353159-0
CONN RCPT 80POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
TE Connectivity AMP Connectors Fine Stack (FS) Series 80-position receptacle connector, part number 8-5353159-0. This surface mount connector features gold plated contacts with an 8.00µin (0.203µm) finish, offering enhanced conductivity and durability. Designed for mezzanine and board-to-board applications, it provides a mated stacking height of 1.5mm with a low profile of 0.047" (1.20mm) above the board. The 0.020" (0.50mm) pitch and two-row configuration enable high-density connections. Solder retention features ensure mechanical stability during assembly. This component is supplied on tape and reel for automated manufacturing processes and finds application in consumer electronics and industrial automation.
Additional Information
Series: Fine Stack (FS)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Pitch | 0.020"" (0.50mm) |
| Height Above Board | 0.047"" (1.20mm) |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Mated Stacking Heights | 1.5mm |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy
1-179397-2
CONN RCPT 12POS SMD TIN

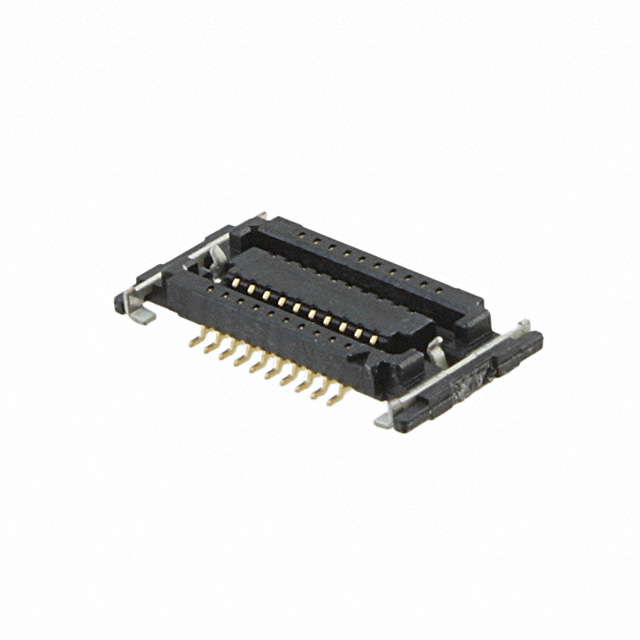

2-5353512-0
CONN RCPT 20POS SMD GOLD

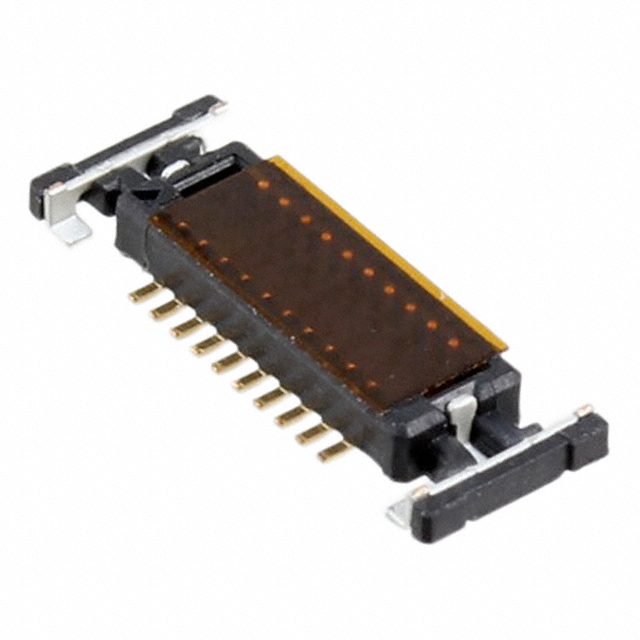

2-5353515-0
