7-5179180-3
CONN RCPT 80POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More

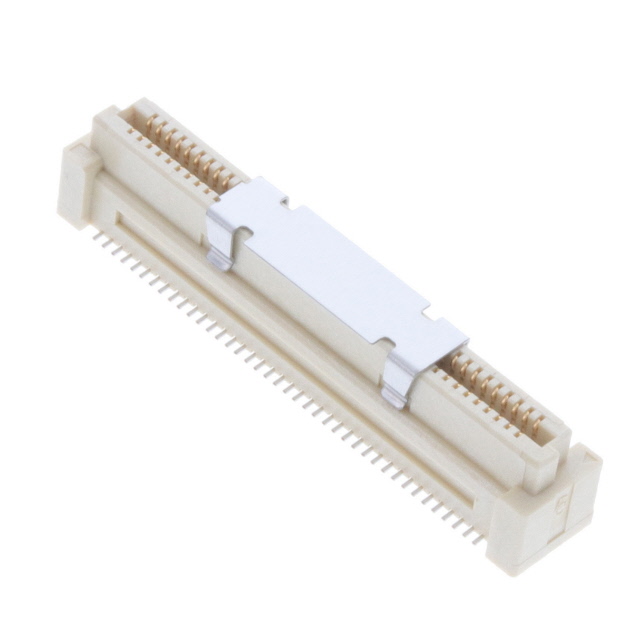

80 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Additional Information
Series: Free Height (FH)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Pitch | 0.031"" (0.80mm) |
| Height Above Board | 0.305"" (7.75mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | 9mm, 10mm, 11mm, 12mm |
| Number of Rows | 2 |
