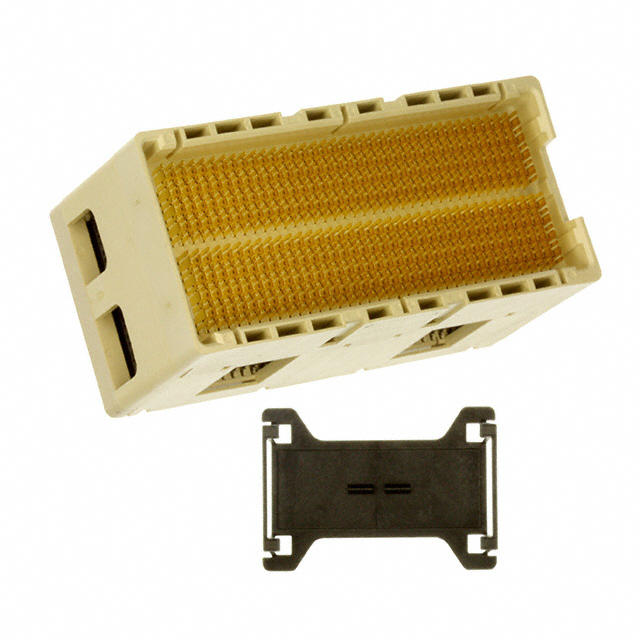

7-1761616-5
CONN DIFF ARRAY PLUG 296POS SMDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
296 Signal (148 Pair) Position Connector Differential Pair Array, Male Surface Mount Gold
Additional Information
Series: STEP-ZRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Differential Pair Array, Male |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 296 Signal (148 Pair) |
| Pitch | 0.051"" (1.30mm) |
| Height Above Board | 1.022"" (25.95mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | 30mm, 36mm, 40mm |
| Number of Rows | 18 |
Request a Quote
Clients Also Buy

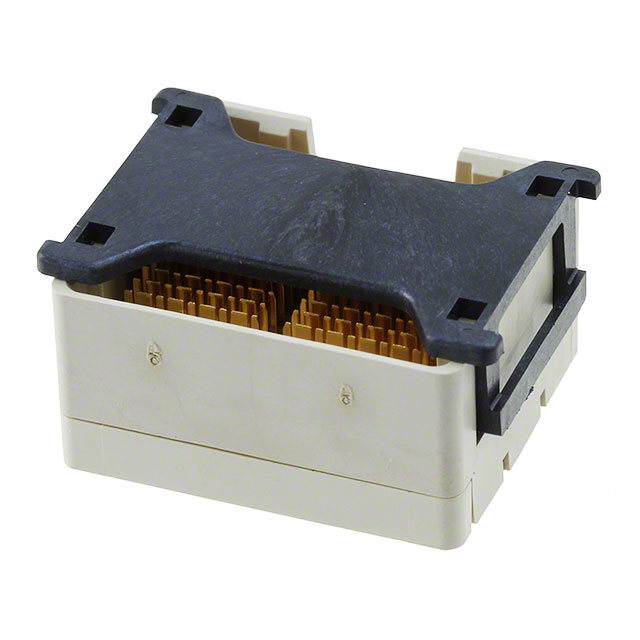

1-1761612-3
CONN DIFF ARRAY PLUG 104POS SMD

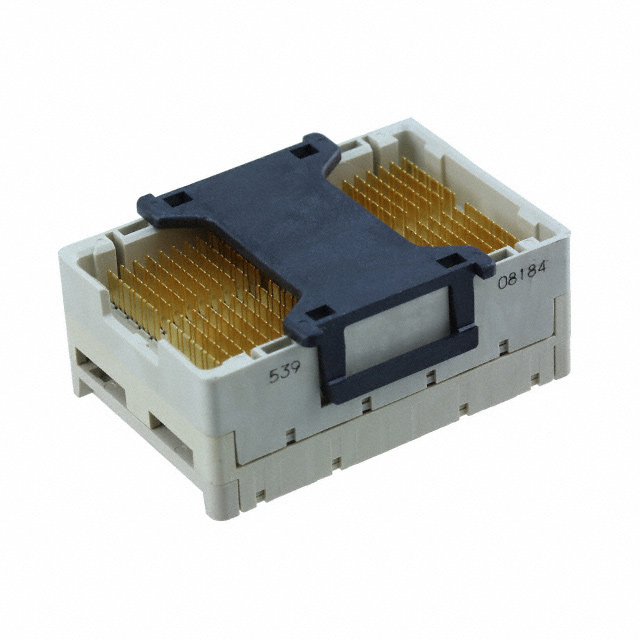

1-1761614-5
CONN DIFF ARRAY PLUG 200POS SMD

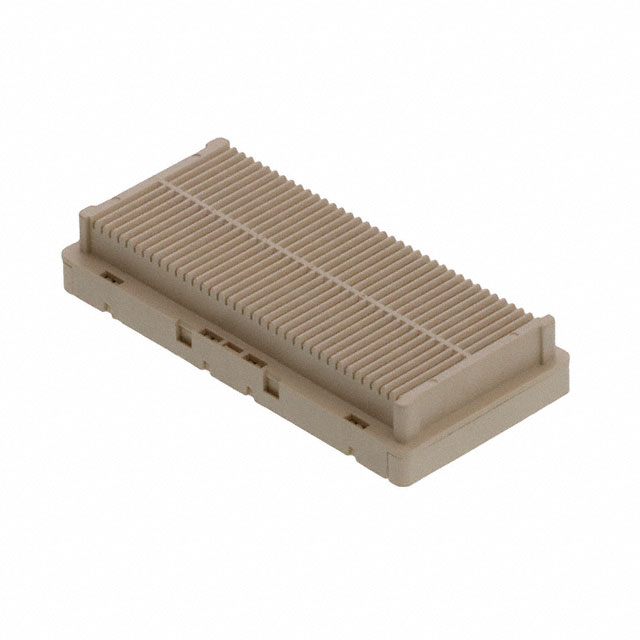

1761617-5
