6674147-1
CONN RCPT 80POS VERT GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
TE Connectivity AMP Connectors Receptacle, 84-position (80 signal + 4 power) through-hole connector with a 0.024" (0.60mm) pitch. This component features gold contact finish for enhanced conductivity and durability, and includes board guides for precise alignment. Designed for high-density interconnect applications, it is suitable for use in telecommunications, data networking, and industrial automation systems. The 2-row configuration and 0.598" (15.20mm) height above board makes it ideal for mezzanine and board-to-board configurations requiring robust and reliable connections.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 84 (80 + 4 Power) |
| Pitch | 0.024"" (0.60mm) |
| Height Above Board | 0.598"" (15.20mm) |
| Contact Finish Thickness | - |
| Mated Stacking Heights | - |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

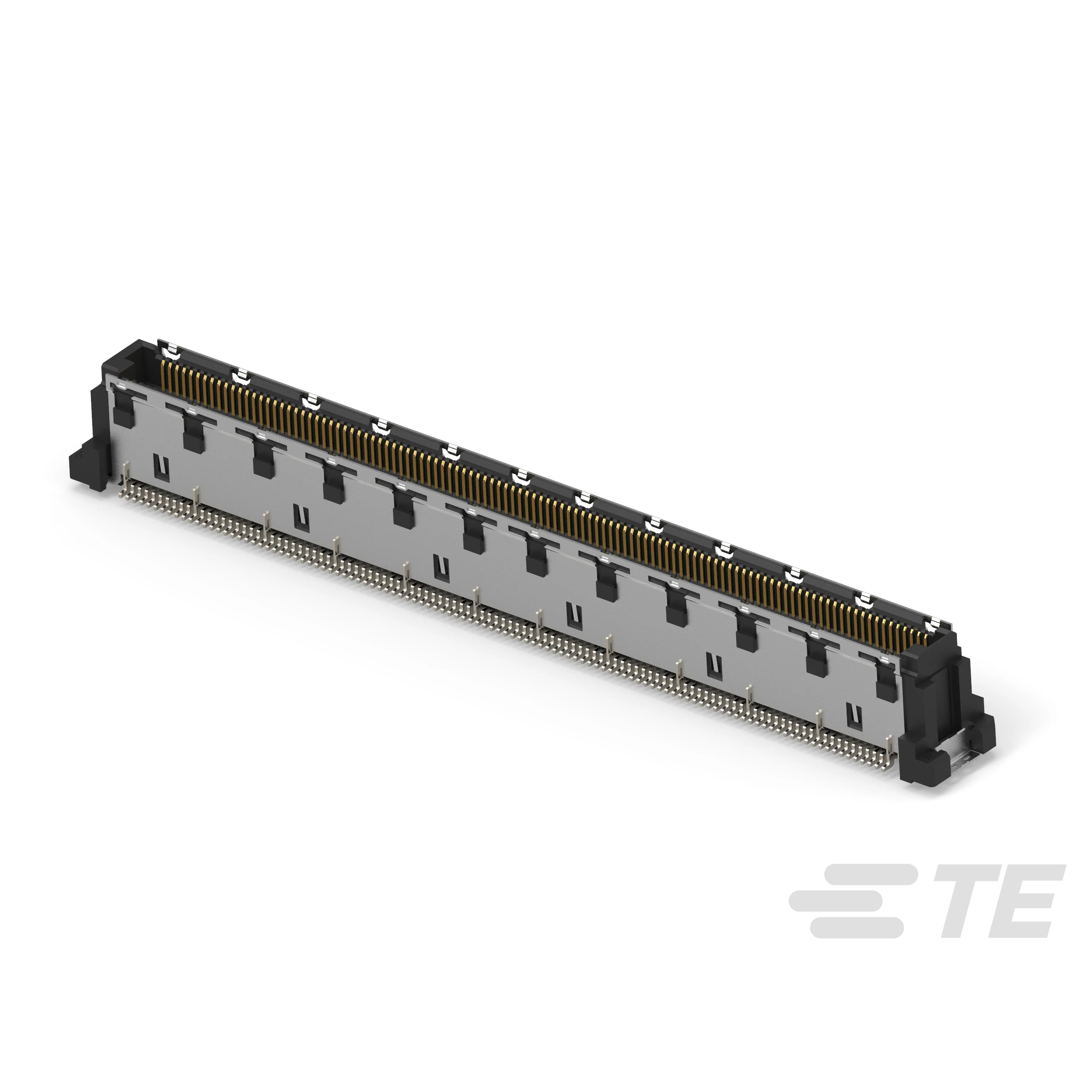

2357798-1
16G,05FH,PLUG,22OP,8H 8U""AU, HT,

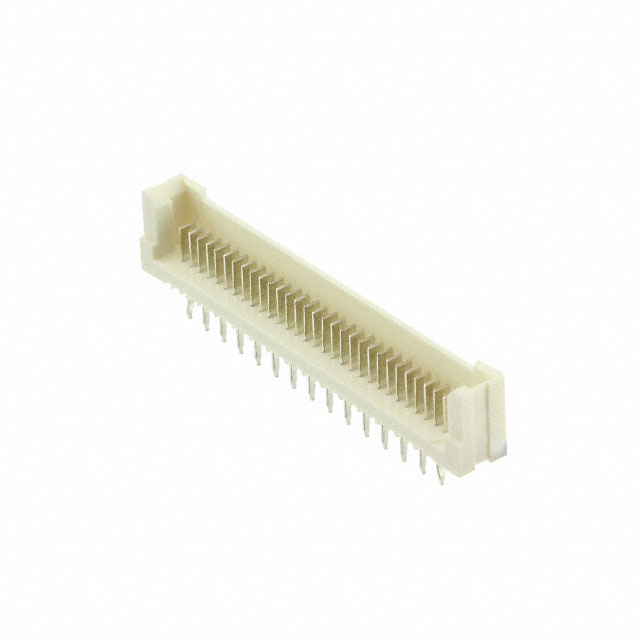

3-917361-0
