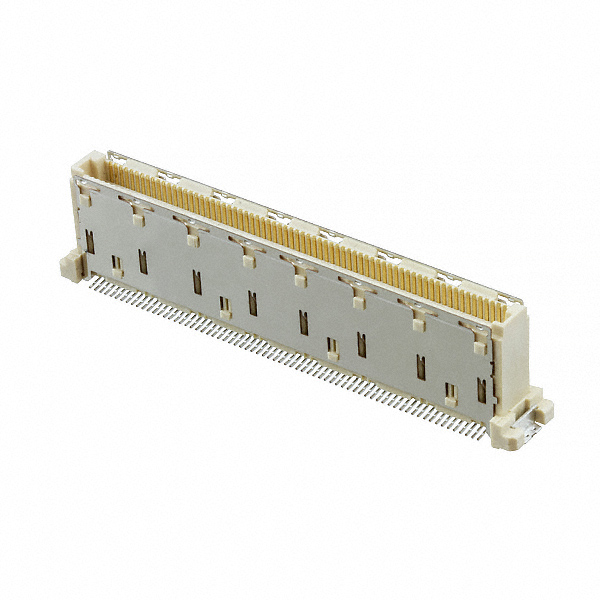

6473225-1
CONN PLUG 140POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
TE Connectivity AMP Connectors Free Height (FH) series 6473225-1 is a 140-position plug connector with an outer shroud contact design. This surface mount component features a gold contact finish with an 8.00µin (0.203µm) thickness for enhanced conductivity and durability. Engineered for mezzanine and board-to-board applications, it offers a mated stacking height of 12mm with a height above board of 0.451" (11.45mm). Key features include board guides and solder retention for robust assembly. The connector operates with a 0.024" (0.60mm) pitch across its two rows. This component is commonly utilized in telecommunications, data networking, and industrial automation systems.
Additional Information
Series: Free Height (FH)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tray |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 140 |
| Pitch | 0.024"" (0.60mm) |
| Height Above Board | 0.451"" (11.45mm) |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Mated Stacking Heights | 12mm |
| Number of Rows | 2 |
