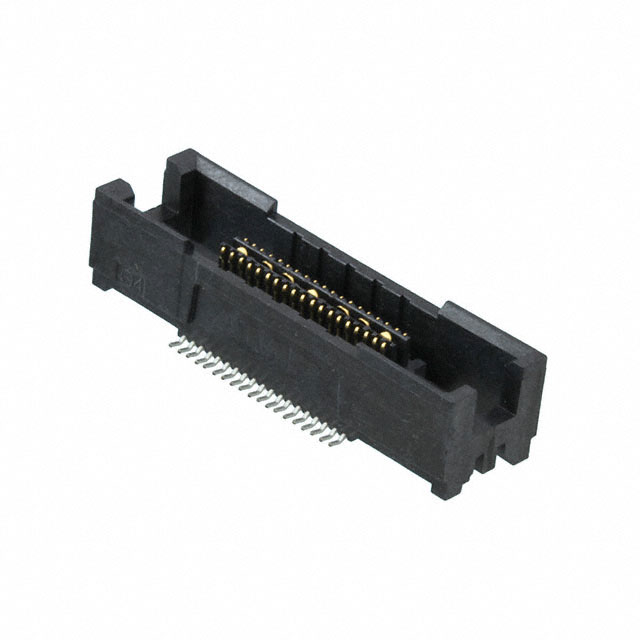

5767110-1
CONN RCPT 38POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
38 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Additional Information
Series: MICTORRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Ground Bus (Plane) |
| Packaging | Tube |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 38 |
| Pitch | 0.025"" (0.64mm) |
| Height Above Board | 0.236"" (6.00mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm |
| Number of Rows | 2 |
