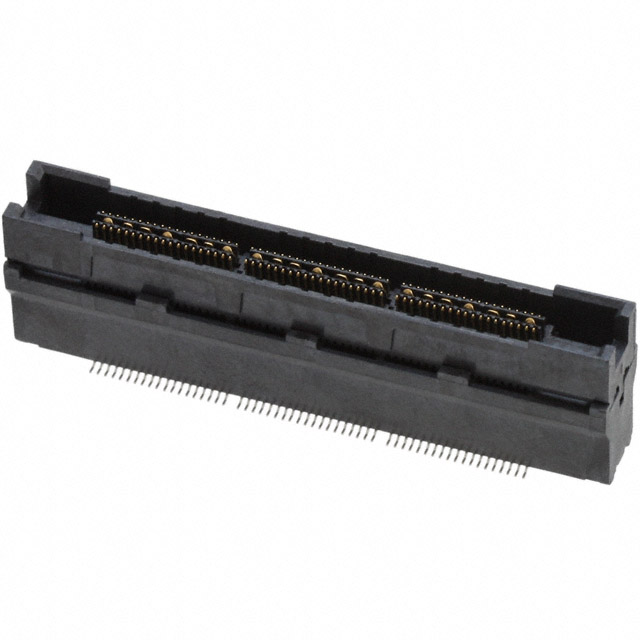

5767094-3
CONN RCPT 114P SMD PALLAD-NICKELManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
114 Position Connector Receptacle, Center Strip Contacts Surface Mount Palladium-Nickel
Additional Information
Series: MICTORRoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Ground Bus (Plane) |
| Packaging | Tube |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Palladium-Nickel |
| Mounting Type | Surface Mount |
| Number of Positions | 114 |
| Pitch | 0.025"" (0.64mm) |
| Height Above Board | 0.587"" (14.91mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm |
| Number of Rows | 2 |
