5767055-6
CONN PLUG 228POS EDGE MNT GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More

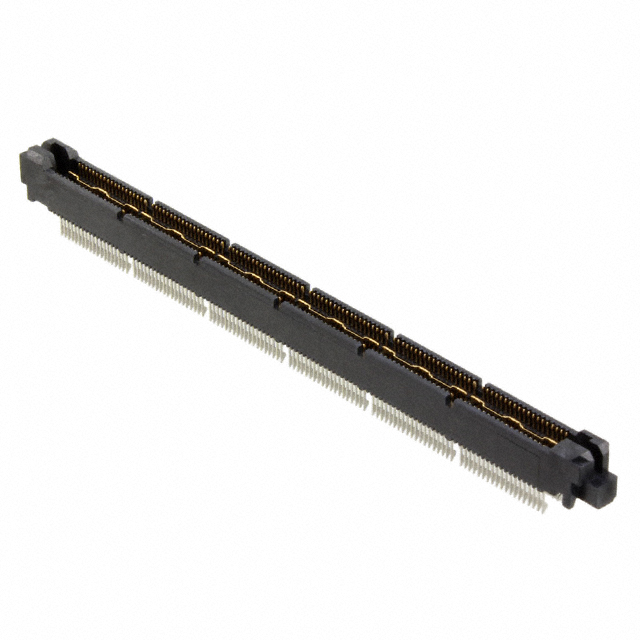

TE Connectivity AMP Connectors MICTOR series connector plug, part number 5767055-6. This 228-position plug features edge mount, straddle mount capability for board-to-board mezzanine applications. It includes outer shroud contacts with a gold plating finish, 30.0µin (0.76µm) thick, ensuring high reliability and conductivity. The design incorporates a board guide and ground bus for enhanced signal integrity and mechanical stability. With a 0.025" (0.64mm) pitch and a height above board of 0.251" (6.38mm), this component is suitable for high-density system architectures. Industries utilizing this connector include telecommunications, data processing, and industrial automation.
Additional Information
Series: MICTORRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Ground Bus (Plane) |
| Packaging | Box |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 228 |
| Pitch | 0.025"" (0.64mm) |
| Height Above Board | 0.251"" (6.38mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | - |
| Number of Rows | 2 |
