5176374-1
CONN RCPT 40POS VERT GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More

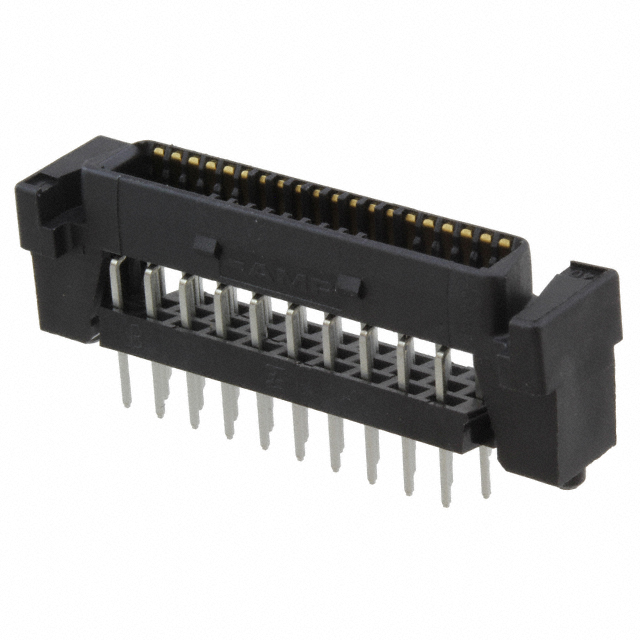

40 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
Additional Information
Series: Free Height (FH)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Pitch | 0.050"" (1.27mm) |
| Height Above Board | 0.453"" (11.50mm) |
| Contact Finish Thickness | 11.8µin (0.30µm) |
| Mated Stacking Heights | 14mm |
| Number of Rows | 2 |
