5084616-5
CONN RCPT 120POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More

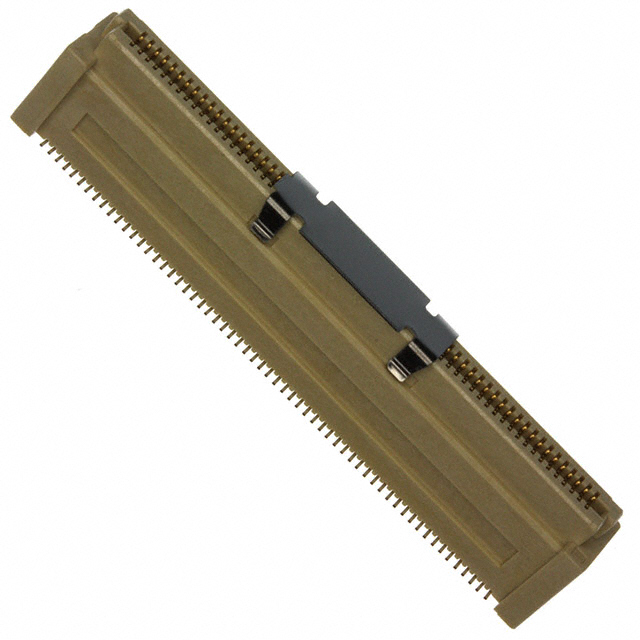

120 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Additional Information
Series: Free Height (FH)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Pitch | 0.031"" (0.80mm) |
| Height Above Board | 0.463"" (11.75mm) |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Mated Stacking Heights | 13mm, 14mm, 15mm, 16mm |
| Number of Rows | 2 |
