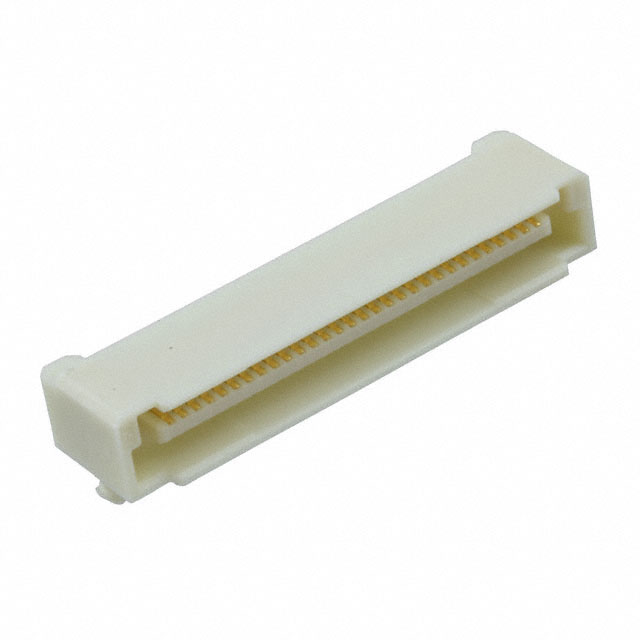

316229-2
CONN PLUG 60POS R/A SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
60 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
Additional Information
Series: Free Height (FH)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Plug, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 60 |
| Pitch | 0.031"" (0.80mm) |
| Height Above Board | 0.201"" (5.10mm) |
| Contact Finish Thickness | 11.8µin (0.30µm) |
| Mated Stacking Heights | - |
| Number of Rows | 2 |
