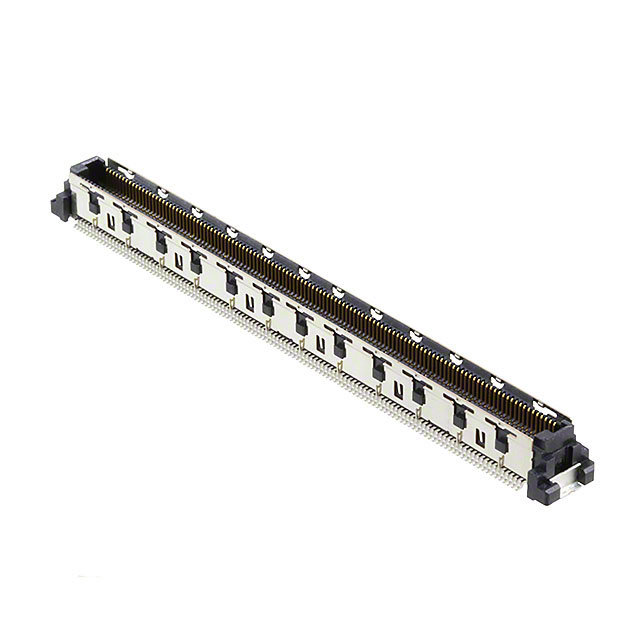

3-5353614-7
CONN PLUG 240POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
TE Connectivity AMP Connectors Free Height (FH) series 240-position plug connector, part number 3-5353614-7, offers a high-density surface mount solution. This component features gold-plated contacts with an 8.00µin (0.203µm) finish, ensuring reliable signal integrity. Designed for mezzanine and board-to-board applications, it provides a robust connection with board guides and solder retention features. The connector has a height above board of 0.214"" (5.45mm) and supports a mated stacking height of 6mm. Its 0.020"" (0.50mm) pitch and two-row configuration maximize board space utilization. Typically found in telecommunications, data processing, and industrial automation systems, this connector is supplied in trays.
Additional Information
Series: Free Height (FH)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tray |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 240 |
| Pitch | 0.020"" (0.50mm) |
| Height Above Board | 0.214"" (5.45mm) |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Mated Stacking Heights | 6mm |
| Number of Rows | 2 |
